Grundfos 99145220 - CRN 125-6-2 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99145220

Price:
Sale price$114,268.06
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 125-6-2 A-P-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN125HP460V3.0-Phase60 HzIE3 / NEMA PremiumTEFCStainless steel

The Grundfos 99145220 (CRN 125-6-2 A-P-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 660US gpm at 652.6ft. Rated 460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
125HP
Voltage
460V
Phase
3.0-Phase
Max Flow
660US gpm
Max Head
652.6ft
Max Pressure
580.15psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 125-6-2 A-P-A-V-HQQV
Series: CRN
Model Code: CRN 125-6-2 A-P-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: 1000 psi
Technical Specifications
Model Number 99145220
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 125HP
Voltage 460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3565rpm
Pump Speed 3563rpm
Full Load Current 137A
Motor Type BALDOR
Motor Protection PTC
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 95.4%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 660US gpm
Nominal Head 652.6ft
Max Operating Pressure 580.15psi
Max Fluid Temperature 194°F
Max Ambient Temperature 122°F
Inlet Connection 6inch
Outlet Connection 6inch
Pipe Pressure Rating 1000 psi
Pipe Standard PJE
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 125-6-2 A-P-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712607593322
Applications Industrial applications
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection 1000 psi
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 444TSD
Frequency converter NONE
Full load SF current 158/79 A
Gross weight 2860.0 lb
IE efficiency IE3 95.4%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material certified according to European standards
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 854.4 ft
Maximum operating pressure 40 bar
Model A
Motor 444TSD
Motor efficiency at 1/2 load 0.946
Motor efficiency at 3/4 load 0.954
Motor efficiency at full load 1 0.954
Motor standard NEMA
Motor type BALDOR
Net weight 2380.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 93 kW
Power factor 1 0.9
Pressure rating for connection 1000 psi
Product family CRN 125
Pump 93 kW
Pump speed on which pump data are based 3563 rpm
Pump version A
Pumped liquid Water
Rated current 137 A
Rated flow 660 US gpm
Rated head 652.6 ft
Rated power - P2 93 kW
Rated speed 3565 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 6
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type BALDOR
Type of connection PJE
Version A

Motor Curves

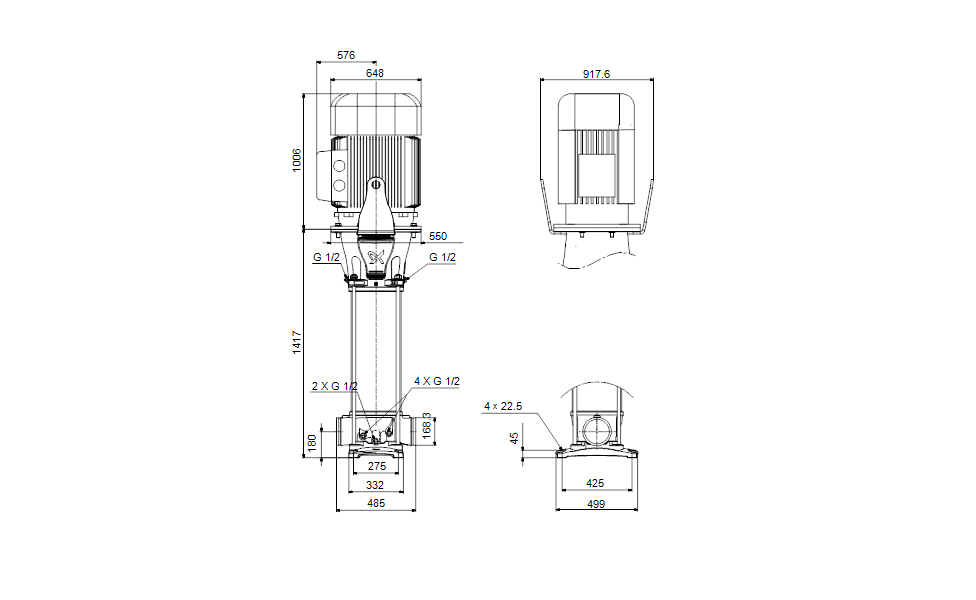

Dimensional Drawing

DWiring Diagram
