Name: Grundfos 92720195 - CRN 125-4-1 A-G-A-E-HQBE | Vertical | Multistage | Centrifugal
Brand: GRUNDFOS
SKU: 92720195
Availability: InStock

Image shown may not be actual product

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

CRN 125-4-1 A-G-A-E-HQBE · Vertical Multistage Centrifugal Pump — All Stainless

CRN100HP460V3.0-Phase60 HzIE3 / NEMA PremiumTEFCStainless steel

The Grundfos 92720195 (CRN 125-4-1 A-G-A-E-HQBE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 660US gpm at 450.8ft. Rated 460V, 3.0-Phase, 60 Hz.

Power

100HP

Voltage

460V

Phase

3.0-Phase

Max Flow

660US gpm

Max Head

450.8ft

Max Pressure

580.15psi

Grundfos

World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945

Industrial Grade

IE3 / NEMA Premium motor — reduces operating cost over service life

Authorized Distributor

Genuine Grundfos product — full manufacturer warranty coverage

Expert Support

Technical help available — call (781) 281-8905 or chat

Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 125-4-1 A-G-A-E-HQBE

Series: CRN

Model Code: CRN 125-4-1 A-G-A-E-HQBE

Impeller Material: Stainless steel

Housing Material: Stainless steel

Shaft Seal: HQBE

Flange Rating: 300 lb

Technical Specifications

Model Number	92720195
Product Series	CRN
Series Description	Vertical Multistage Centrifugal Pump — All Stainless
Power	100HP
Voltage	460V
Phase	3.0-Phase
Frequency	60 Hz
Motor Speed	3545rpm
Pump Speed	3568rpm
Full Load Current	112A
Motor Type	WEG
Motor Efficiency Class	IE3 / NEMA Premium
Motor Efficiency	IE3 94,1%
Insulation Class	F
Protection Class (IP)	TEFC
Nominal Flow	660US gpm
Nominal Head	450.8ft
Max Operating Pressure	580.15psi
Max Fluid Temperature	248°F
Max Ambient Temperature	104°F
Inlet Connection	6inch
Outlet Connection	6inch
Pipe Pressure Rating	300 lb
Pipe Standard	ANSI
Impeller Material	Stainless steel
Housing Material	Stainless steel
Shaft Seal	HQBE

Important Notices

Electrical	Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3.0-Phase, 60 Hz.
Temperature limits	Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running	Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance	Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.

Documentation

✓ Installation and Operating Manual (IOM) — CRN Series

✓ Product Data Sheet — CRN 125-4-1 A-G-A-E-HQBE

✓ Service Manual and Spare Parts List

Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.

Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.

Grundfos 92720195 - CRN 125-4-1 A-G-A-E-HQBE | Vertical | Multistage | Centrifugal

Description

All Stainless Steel Construction

Corrosion-Resistant for Aggressive Fluids

Cartridge Mechanical Seal

Dual Flange Standard — DIN, ANSI, JIS

3-A and FDA-Compliant Options

Wide Pressure Range

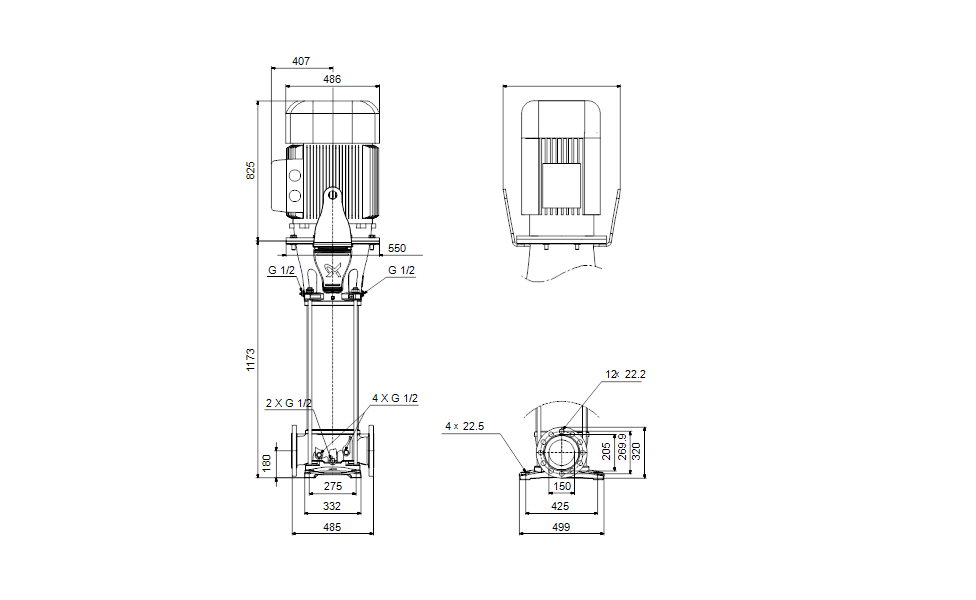

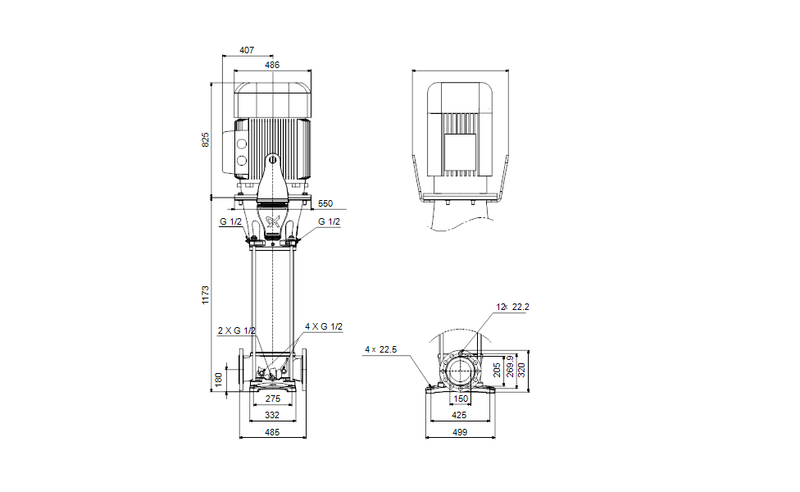

Dimensional Drawing

DWiring Diagram
