Grundfos 99142646 - CRN 125-3 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99142646

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

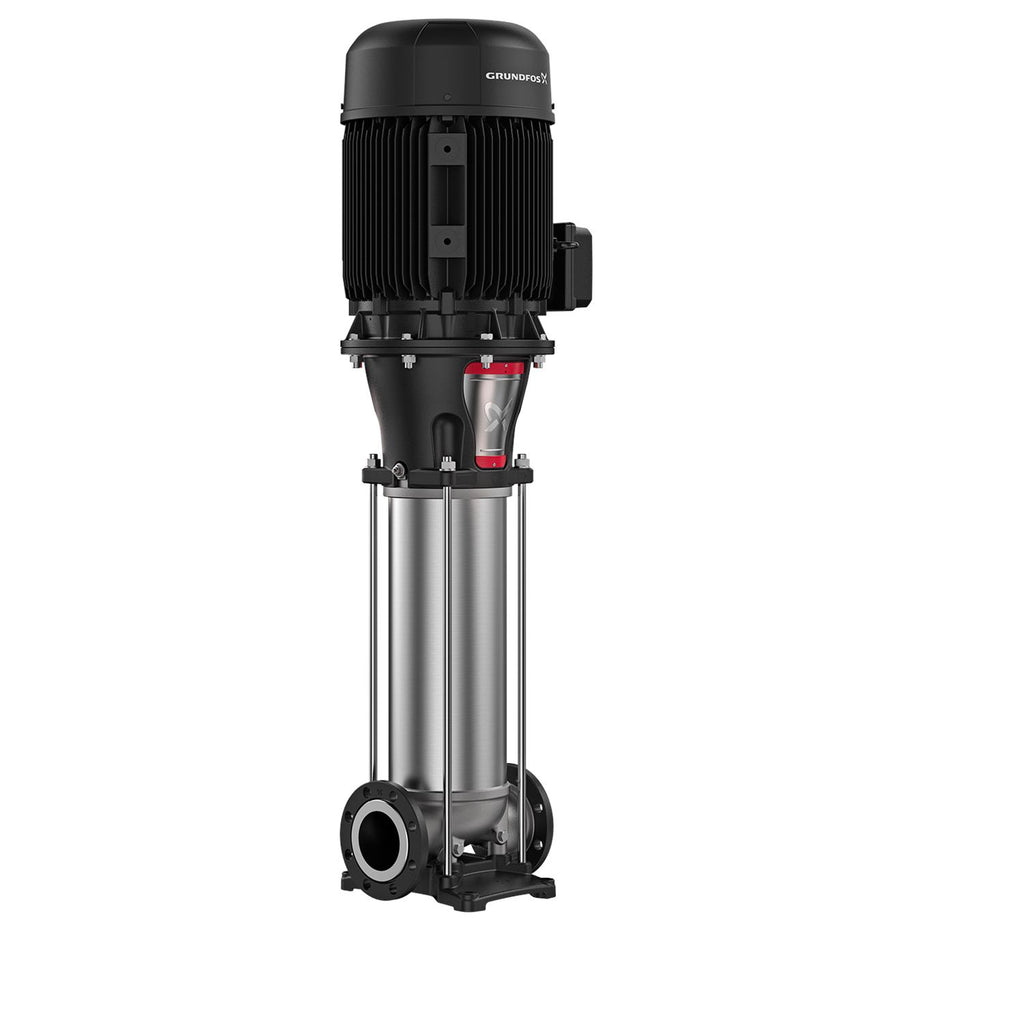

CRN 125-3 A-F-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
CRN50HP380-420D/660-725YV3-Phase50 HzIE3IP55Stainless steel

The Grundfos 99142646 (CRN 125-3 A-F-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 550US gpm at 255.6ft. Rated 380-420D/660-725YV, 3-Phase, 50 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
50HP
Voltage
380-420D/660-725YV
Phase
3-Phase
Max Flow
550US gpm
Max Head
255.6ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 125-3 A-F-A-E-HQQE
Series: CRN
Model Code: CRN 125-3 A-F-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 99142646
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 50HP
Voltage 380-420D/660-725YV
Phase 3-Phase
Frequency 50 Hz
Motor Speed 2955rpm
Pump Speed 2970rpm
Full Load Current 65/37,5A
Motor Type INNOMOTICS
Motor Protection PTC
Motor Efficiency Class IE3
Motor Efficiency IE3 93,7%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 550US gpm
Nominal Head 255.6ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 131°F
Inlet Connection DN 150
Outlet Connection DN 150
Pipe Pressure Rating PN 16
Pipe Standard DIN
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Approvals / Certifications CE, EAC, UKCA, SEPRO
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-420D/660-725YV, 3-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 125-3 A-F-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712607541583
Approvals CE
Approvals for drinking water ACS
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 16
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FF350
Frequency converter NONE
Gross weight 1070.0 lb
IE efficiency IE3 93
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 131 °F
Maximum head 331.1 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF350
Motor efficiency at 1/2 load 94.0-94.0 %
Motor efficiency at 3/4 load 94.2-94.2 %
Motor efficiency at full load 1 93.7-93.7 %
Motor standard IEC
Motor type SIEMENS
Net weight 943.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 37 kW
Power factor 1 0.88
Pressure rating for connection PN 16
Pump 37 kW
Pump speed on which pump data are based 2970 rpm
Pump version A
Pumped liquid Water
Rated current 65/37.5 A
Rated flow 550 US gpm
Rated head 255.6 ft
Rated power - P2 37 kW
Rated speed 2955 rpm
Rated voltage 3 x 380-420D/660-725Y V
Real Time 1 Available on 2/19/2024 Plant: Allentown  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 150
Size of outlet connection DN 150
Stages 3
Standard IEC
Starting current 710-710 %
Support bearing Graflon
Terminal box position 6
Thrust handling device N
Type SIEMENS
Type of connection DIN
Version A
Danish VVS No. 386936230
Finnish LVI No. 4925628

Motor Curves

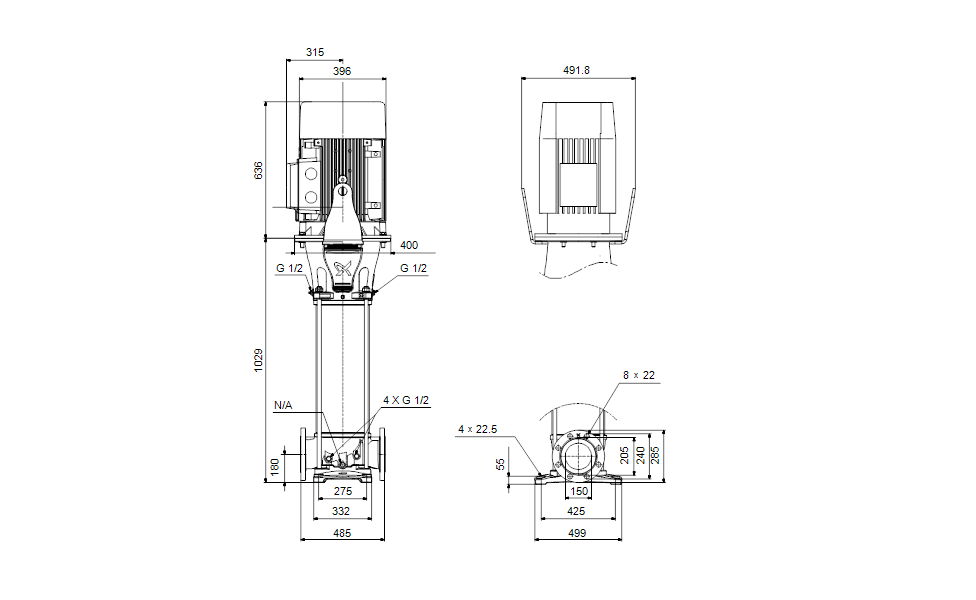

Dimensional Drawing
