EAN
5713830185940
Applications
Industrial applications
Actual impeller diameter
6.38 in
Bearing 1
WC/WC
Bearing 2
Graflon
Built-in motor protection
NONE
Code for rubber
E
Code for shaft seal
HQQE
Connect code
G
Connection
150 lb
Cooling
TEFC
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Diameter
6.38 in
DOE Pump Energy Index CL
0.93
Enclosure class (IEC 34-5)
IP54
Flange size for motor
365TSC
Frequency converter
NONE
Full load SF current
190/95 A
Gross weight
1640.0 lb
IE efficiency
IE3 94
IE Efficiency class
IE3 / NEMA Premium
Impeller
Stainless steel
Impellers
1
Insulation class (IEC 85)
F
Liquid temperature range
-40 .. 248 °F
Low NPSH
N
Mains frequency
60 Hz
Material certified according to
European standards
Material code
A
Material Pricing Group
6
Max pressure at stated temp
232 psi / 250 °F
Maximum ambient temperature
122 °F
Maximum head
427.5 ft
Maximum operating pressure
16 bar
Model
A
Motor
365TSC
Motor efficiency at full load 1
0.945
Motor standard
NEMA
Motor type
BALDOR
Net weight
1330.0 lb
Number of poles
2
Number of reduced-diameter impellers
1
Power (P2) required by pump
55 kW
Power factor 1
0.87
Pressure rating for connection
150 lb

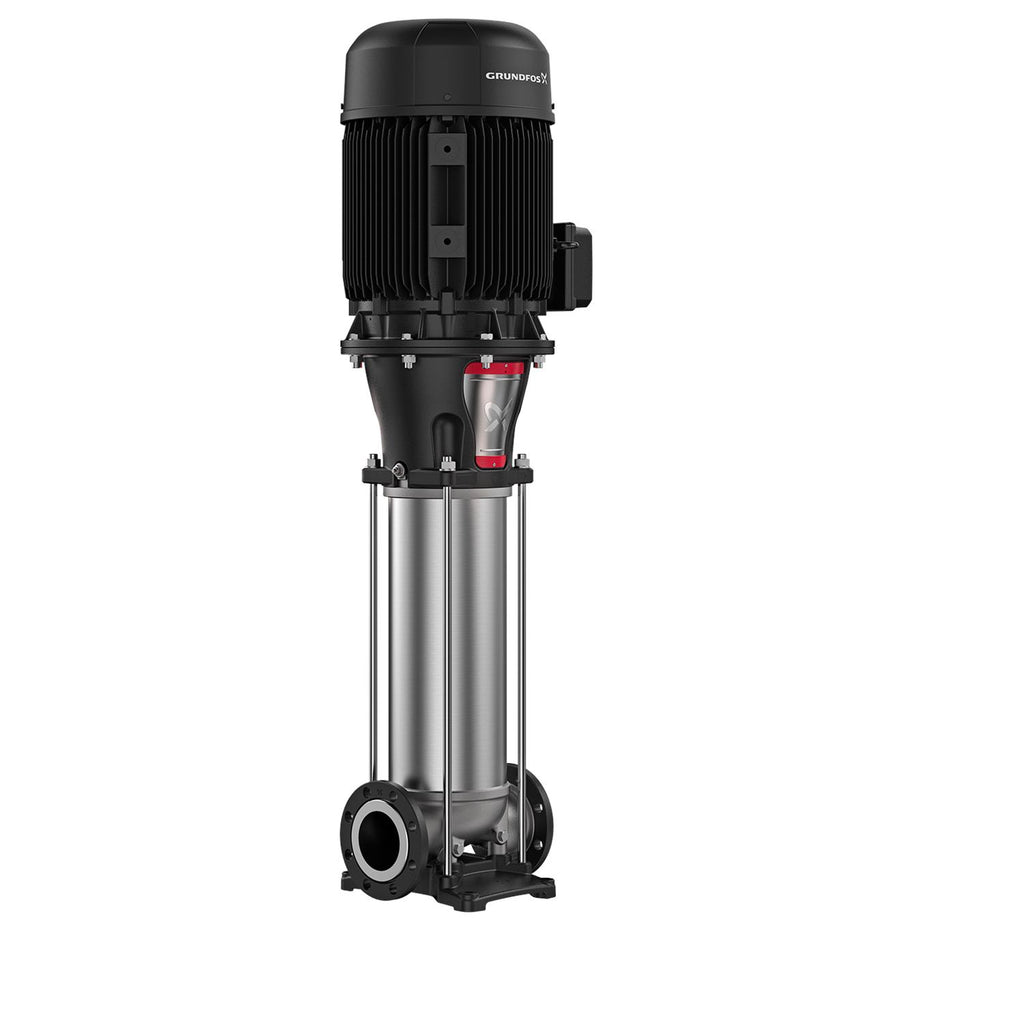

Product family
CRN 125
Pump
55 kW
Pump speed on which pump data are based
3556 rpm
Pump version
A
Pumped liquid
Water
Rated current
166/83 A
Rated flow
660 US gpm
Rated head
321.9 ft
Rated power - P2
55 kW
Rated speed
3550 rpm
Rated voltage
3 x 230/460 V
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber
E
Selected liquid temperature
68 °F
Service factor
1.15
Size of inlet connection
6 inch
Size of outlet connection
6 inch
Stages
3
Standard
NEMA
Starting current
5.11
Support bearing
Graflon
Thrust handling device
N
Type
BALDOR
Type of connection
ANSI
Version
A
