Grundfos 99145210 - CRN 125-2-1 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99145210

Price:
Sale price$51,691.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99145210 - CRN 125-2-1 A-P-A-V-HQQV is a vertical multistage centrifugal pump designed for industrial and commercial systems that require compact, high-pressure performance. It suits users needing reliable in-line vertical pumping solutions.

Key features

  • Manufactured by Grundfos for industrial applications and built to integrate into multistage systems
  • Vertical, in-line centrifugal design offering high-pressure capability and space-saving installation
  • Provides consistent pressure boosting and stable flow for demanding process or service duties

Applications

Typical uses include pressure boosting, boiler feed, HVAC systems, water treatment and general process pumping in commercial and industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99145210

EAN 5712607593094
Applications Industrial applications
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection 1000 psi
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP54
Flange size for motor 324TSC
Frequency converter NONE
Full load SF current 102/51 A
Gross weight 1160.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material certified according to European standards
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 271.3 ft
Maximum operating pressure 25 bar
Model A
Motor 324TSC
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type BALDOR
Net weight 842.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 30 kW
Power factor 1 0.86
Pressure rating for connection 1000 psi
Product family CRN 125
Pump 30 kW
Pump speed on which pump data are based 3538 rpm
Pump version A
Pumped liquid Water
Rated current 90/45 A
Rated flow 660 US gpm
Rated head 195.5 ft
Rated power - P2 30 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 2
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type BALDOR
Type of connection PJE
Version A

Motor Curves

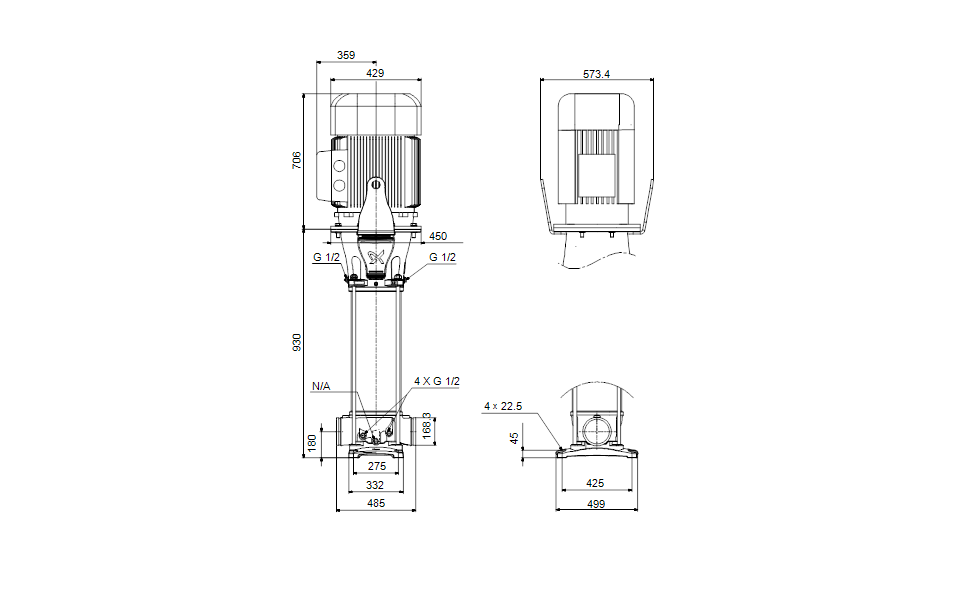

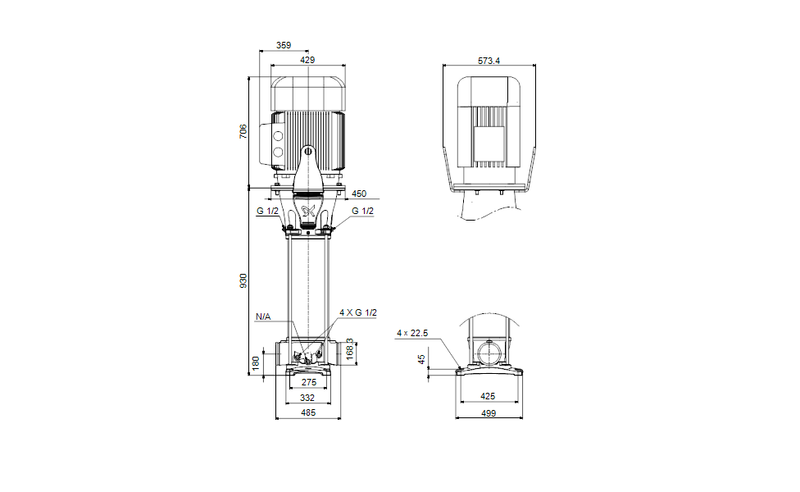

Dimensional Drawing

DWiring Diagram
