Grundfos 92680168 - CRN 125-1 A-F-H-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92680168

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92680168 - CRN 125-1 A-F-H-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92680168 - CRN 125-1 A-F-H-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRN 125-1 A-F-H-V-HQQV is ideal for high-pressure applications, making it a perfect choice for those seeking durability and performance. This pump is part of the renowned Grundfos centrifugal pump range, known for its exceptional quality and efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715118038344
Actual impeller diameter 6.38 in
Approvals CE
Approvals for drinking water ACS
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 6.38 in
DOE Pump Energy Index CL 0.92
Flange size for motor FF300
Frequency converter NONE
Gross weight 471.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code H
Material Pricing Group 33
Maximum head 166.7 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor standard IEC
Net weight 330.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3565 rpm
Pump version A
Rated flow 660 US gpm
Rated head 121.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 150
Size of outlet connection DN 150
Stages 1
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

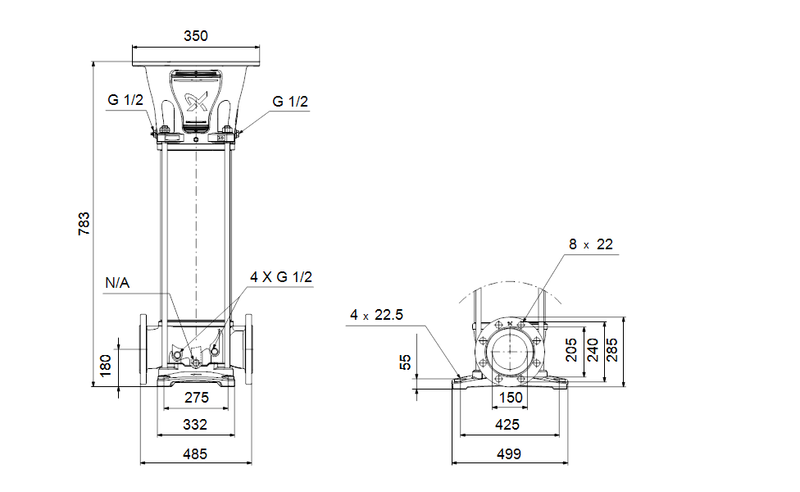

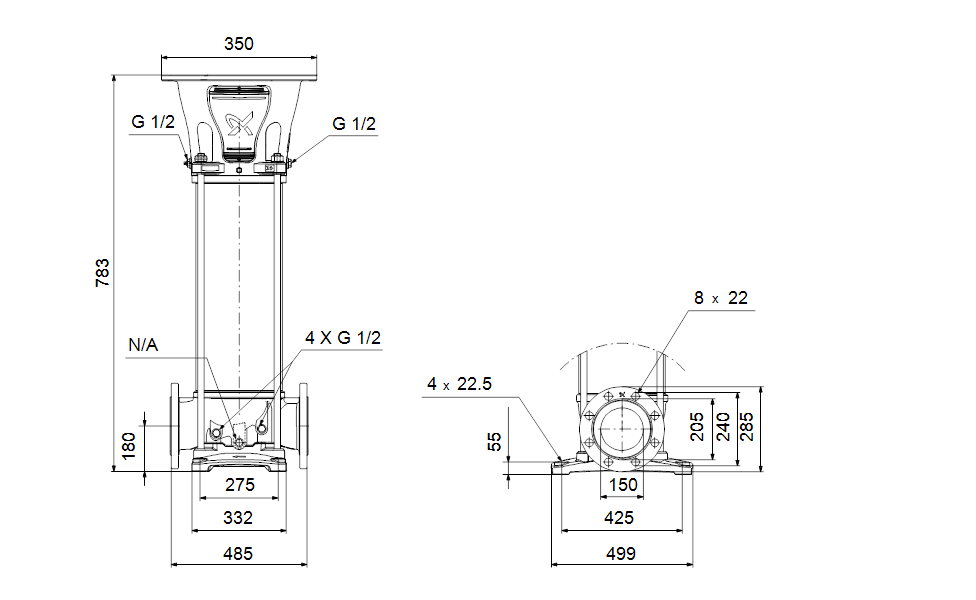

Dimensional Drawing
