Grundfos 99400315 - CRN 125-1-1 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $8,629.76
GRUNDFOSSKU: 99400315

Price:
Sale price$11,533.24 Regular price$20,163.00
Build to order – stocked components, typically available in 10 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99400315 - CRN 125-1-1 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN 125-1-1 A-P-A-V-HQQV model is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the CRN series, known for its versatility and durability, making it a preferred choice for professionals in various sectors.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5713828497703
Applications Industrial applications
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PJE
Connection 2 1000 psi
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.92
Flange size for motor 254TC
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 558.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 232 psi / 194 °F
Maximum head 123 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 254TC
Motor standard NEMA
n rpm 3538rpm
Net weight 300.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 20 HP
Pressure rating 1000 psi
Pressure rating for connection 1000 psi
Product family CRN 125
Pump 20 HP
Pump housing Stainless steel
Pump inlet 6
Pump outlet 6
Pump version A
Pumped liquid Water
Rated flow 660 US gpm
Rated flow 2 660 US gpm
Rated head 78.74 ft
Rated head 2 78.74 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Stages 1
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type of connection PJE
Version A

Motor Curves

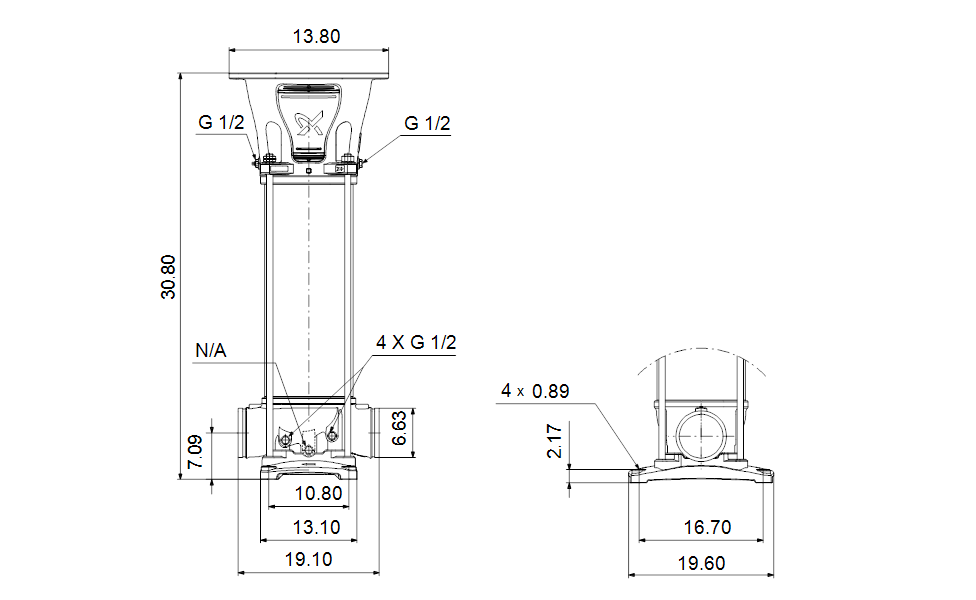

Dimensional Drawing
