Grundfos 99461599 - CRN 10-9 A-P-A-V-HQBV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99461599

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 10-9 A-P-A-V-HQBV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713829501607
Actual impeller diameter 3.66 in
Approvals EAC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQBV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 236.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 32 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 436.4 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 89.9-87.9 %
Motor efficiency at 3/4 load 90.3-89.9 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard IEC
Motor type 132DA
Net weight 187.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.90-0.80
Pressure rating for connection PN 50
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3526 rpm
Pump version A
Pumped liquid Water
Rated current 18
Rated flow 53.3 US gpm
Rated head 351.4 ft
Rated power - P2 5.5 kW
Rated speed 3510-3550 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 9
Standard IEC
Starting current 1020-1480 %
Type 132DA
Type of connection PJE
Version A

Motor Curves

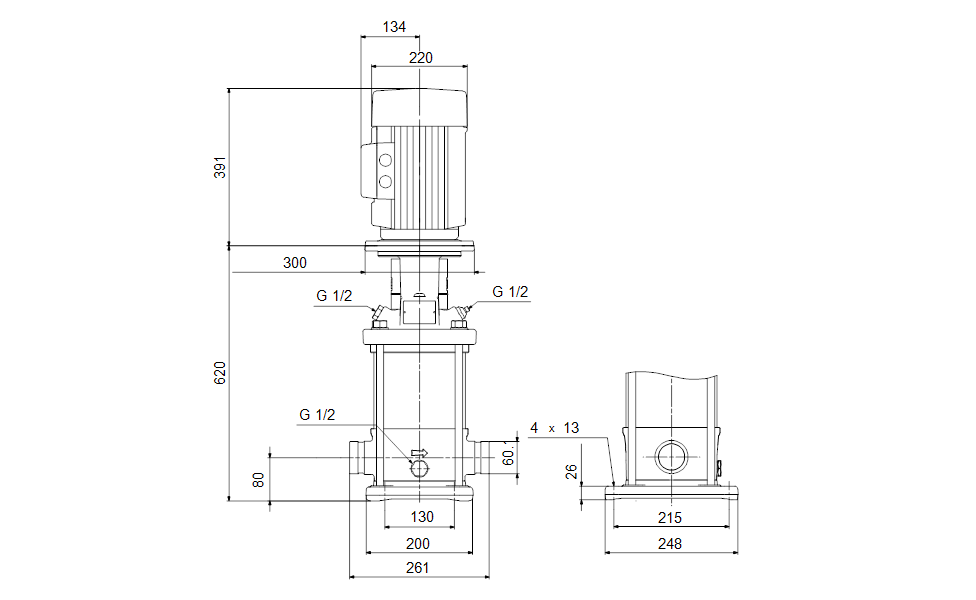

Dimensional Drawing

DWiring Diagram
