Grundfos 98142436 - CRN 10-9 K-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98142436

Price:
Sale price$11,413.89
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98142436 - CRN 10-9 K-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98142436 - CRN 10-9 K-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 10-9 K-P-A-E-HQQE model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711490391879
Actual impeller diameter 3.66 in
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.93
Flange size for motor 213TC
Frequency converter NONE
Gross weight 108.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum head 403.6 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 88.2 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3482 rpm
Pump version K
Rated flow 53.3 US gpm
Rated head 331.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 9
Standard NEMA
Type of connection PJE
Version K

Motor Curves

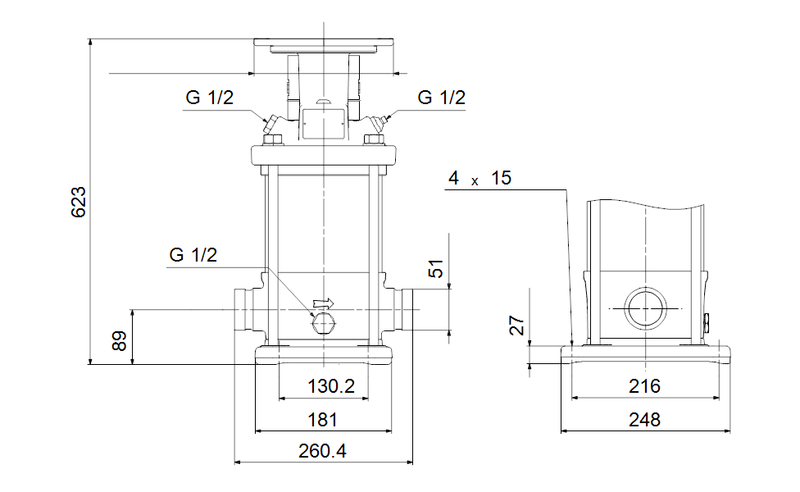

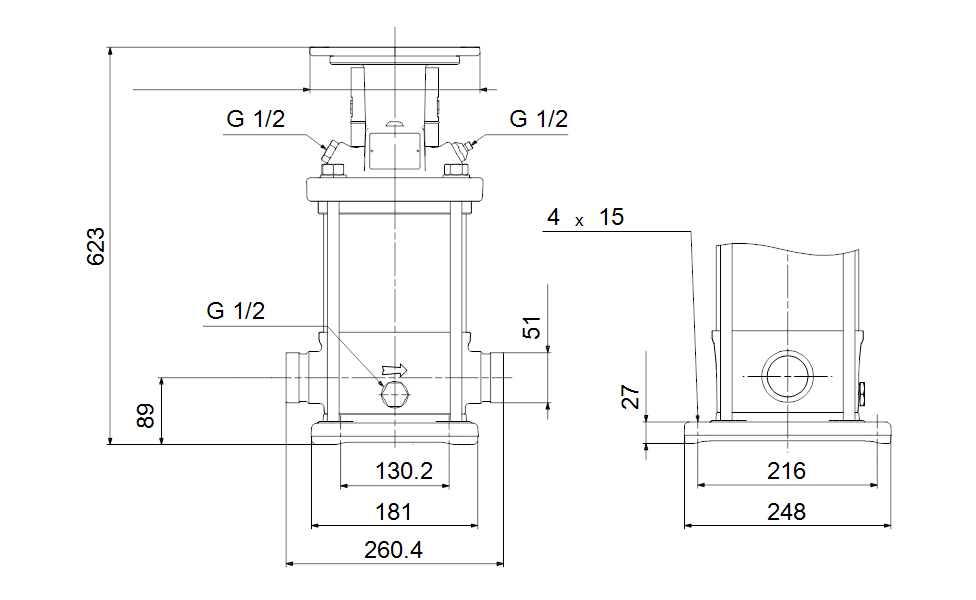

Dimensional Drawing
