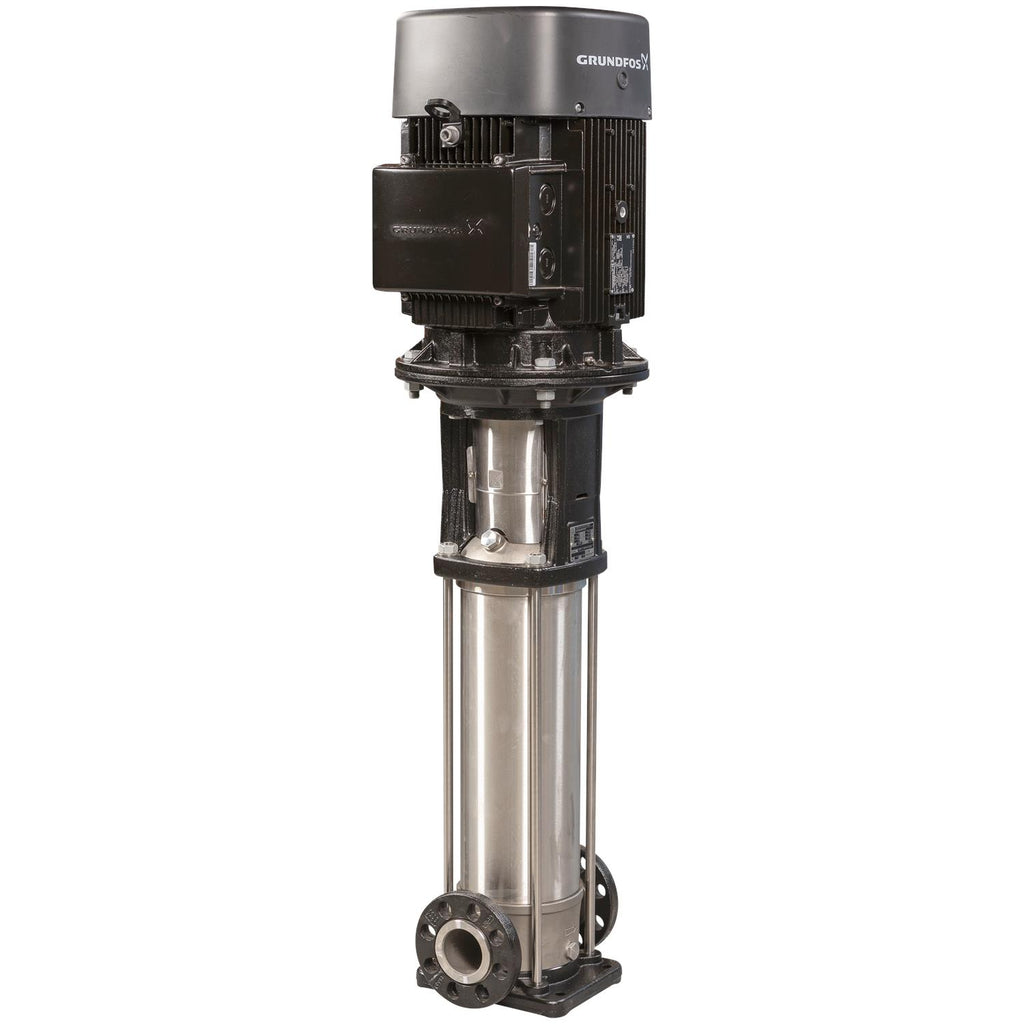

Grundfos 96501293 - CRN 10-9 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96501293

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96501293 - CRN 10-9 A-FGJ-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial fluid handling. It suits technicians and plant maintenance teams needing a compact, high-pressure inline multistage solution.

Key features

  • Vertical multistage centrifugal design for staged pressure development
  • Suitable for high-pressure and inline pump installations
  • Reliable construction for industrial duty and recurring service intervals

Applications

Common uses include boiler feed, high-pressure water delivery, process circulation, and general plant fluid transfer where a vertical multistage centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96501293

EAN 5700396219219
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT130
Frequency converter NONE
Gross weight 141.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 301.2 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at 1/2 load 87.7-85.4 %
Motor efficiency at 3/4 load 88.0-87.0 %
Motor efficiency at full load 1 87.1-87.1 %
Motor standard IEC
Motor type 100LC
Net weight 132.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 25
Pump 3 kW
Pump speed on which pump data are based 2902 rpm
Pump version A
Pumped liquid Water
Rated current 6.3 A
Rated flow 44 US gpm
Rated head 237.2 ft
Rated power - P2 3 kW
Rated speed 2900-2920 rpm
Rated voltage 3 x 380-415D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 9
Standard IEC
Starting current 840-920 %
Terminal box position 6
Type 100LC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

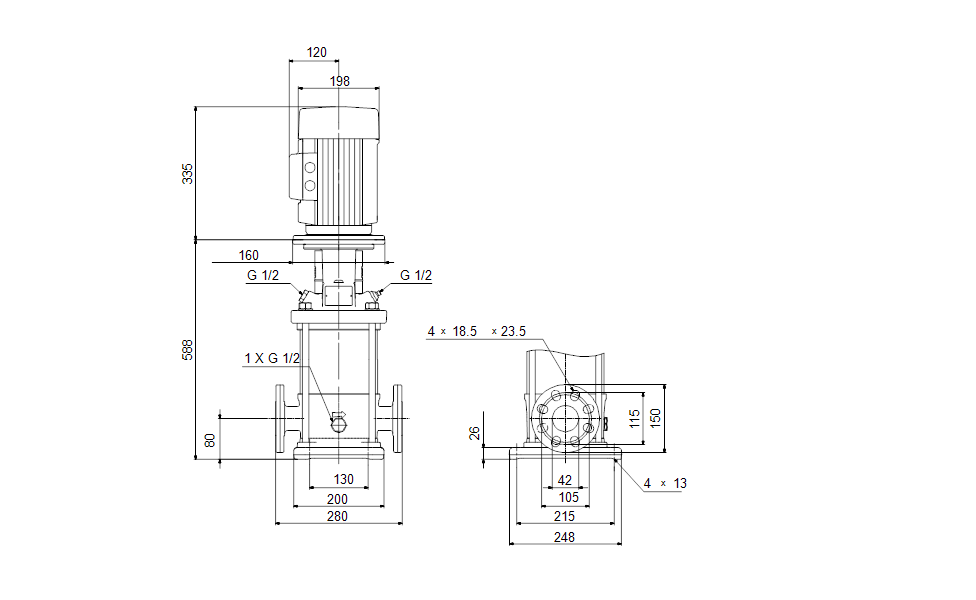

Dimensional Drawing

DWiring Diagram
