Grundfos 97734918 - CRN 10-8 H-G05-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $4,254.32
GRUNDFOSSKU: 97734918

Price:
Sale price$5,685.68 Regular price$9,940.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97734918 - CRN 10-8 H-G05-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction and is ideal for applications requiring high pressure and flow rates. The CRN series is known for its versatility and durability, making it a preferred choice for both booster and centrifugal pumping needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and our team is here to help if you're having trouble locating the right item.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your pumping requirements.

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G05
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 397.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CRN 10-8 H-G05-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 373.7 ft
Maximum operating pressure 232.06 psi
Model A
Motor 213TC
Motor efficiency at 1/2 load 88.1-86.7 %
Motor efficiency at 3/4 load 89.6-89.1 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard NEMA
Motor type 132DA
n rpm F
Net weight 234.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 7.5 HP
Phase 3
Power (P2) required by pump 7.5 HP
Power factor 1 0.89-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 7.5 HP
Pump version H
Rated current 19,5-18,1/9,09 A
Rated flow 52.8 US gpm
Rated head 293 ft
Rated power - P2 7.5 HP
Rated speed 3490-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CRN 10-8 H-G05-A-E-HQQE
Shaft seal HQQE
Stages 8
Standard NEMA
Starting current 1020-1480 %
Type 132DA
Version H

Motor Curves

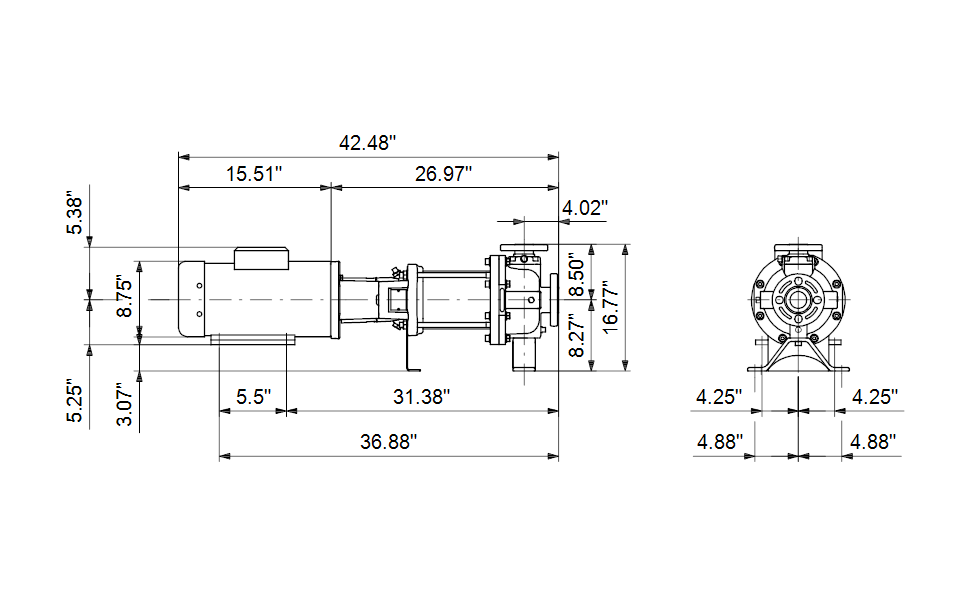

Dimensional Drawing

DWiring Diagram
