Grundfos 98351878 - CRN 10-7 P-P-A-E-HQQE

GRUNDFOSSKU: 98351878

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CRN 10-7 P-P-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5711493476139
Actual impeller diameter 92.9 mm
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Diameter 92.9 mm
DOE Pump Energy Index CL 0.87
Flange size for motor 182TC
Frequency converter NONE
Gross weight 44.0 kg
Impeller Stainless steel
Impellers 0
Liquid temperature range -20 .. 120 °C
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 25 bar / 120 °C
Maximum head 103 m
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 36.0 kg
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version P
Rated flow 12.1 m³/h
Rated head 79.9 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 7
Standard NEMA
Type of connection PJE
Version P

Motor Curves

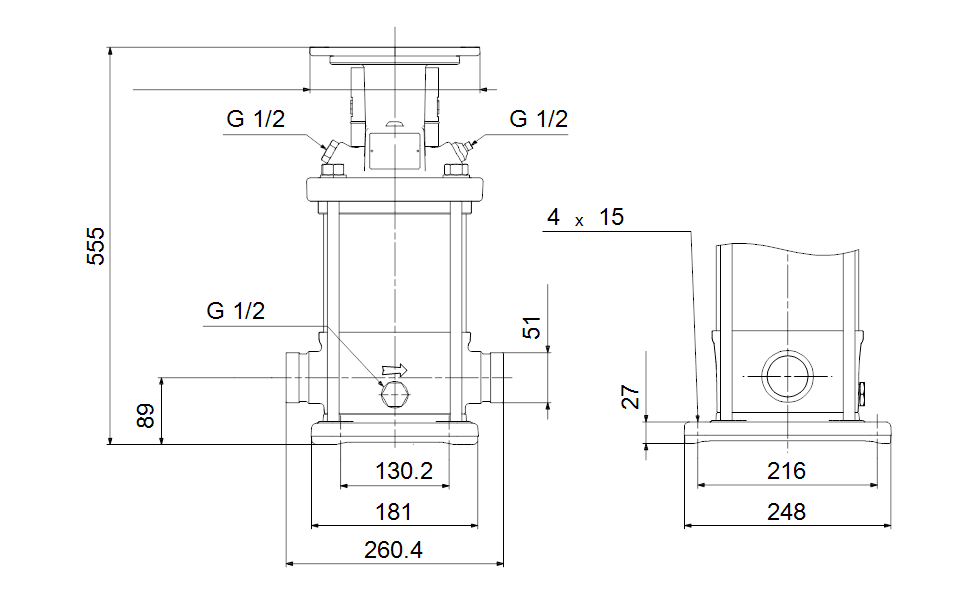

Dimensional Drawing
