Grundfos 98345887 - CRN 10-6 A-CX-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98345887

Price:
Sale price$11,138.89
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98345887 CRN 10-6 A-CX-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial high-pressure in-line applications. It is suitable for technicians and facilities managers replacing or servicing multistage centrifugal units.

Key features

  • Factory-manufactured replacement unit intended for service and repair use
  • Vertical multistage centrifugal configuration for compact, in-line installation
  • Provides high-pressure delivery and reliable staged pumping for consistent system performance

Applications

Commonly used for high-pressure water systems, boiler feed, pressure boosting, process supply, and other industrial in-line multistage duties where compact vertical mounting is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98345887

EAN 5711493365044
Actual impeller diameter 92.9 mm
Approvals CURUS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Diameter 92.9 mm
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 182TC
Frequency converter NONE
Gross weight 82.0 kg
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 25 bar / 120 °C
Maximum ambient temperature 60 °C
Maximum head 88.2 m
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
Net weight 74.0 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.89-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 14
Rated flow 12.1 m³/h
Rated head 69.2 m
Rated power - P2 3.7 kW
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 6
Standard NEMA
Starting current 1000-1470 %
Type 112CA
Type of connection TriClamp
Version A

Motor Curves

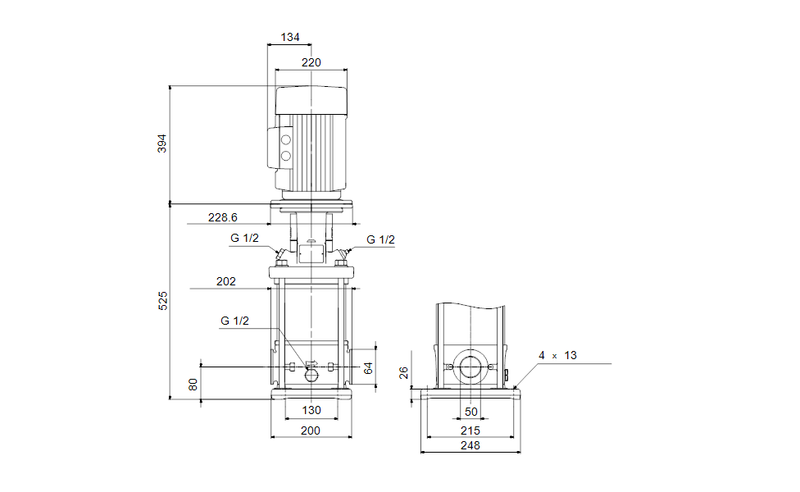

Dimensional Drawing

DWiring Diagram
