Grundfos 96545908 - CRN 10-6 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96545908

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96545908 is a CRN 10-6 A-FGJ-A-V-HQQV vertical multistage centrifugal pump designed for industrial and commercial fluid-handling systems. It suits technicians and service shops replacing or maintaining multi-stage vertical centrifugal units.

Key features

  • Manufactured by Grundfos for industrial applications
  • Vertical, multistage centrifugal configuration for compact installations
  • Supports efficient high-pressure operation for in-line and vertical systems

Applications

Typical uses include high-pressure water transfer, boiler feed, process circulation, and other industrial fluid-handling tasks where vertical multistage centrifugal performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96545908

EAN 5700398431916
Approvals CE
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT130
Frequency converter NONE
Gross weight 77.2 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 291.4 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor standard IEC
Net weight 70.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 3514 rpm
Pump version A
Pumped liquid Water
Rated flow 53.3 US gpm
Rated head 233.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 6
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

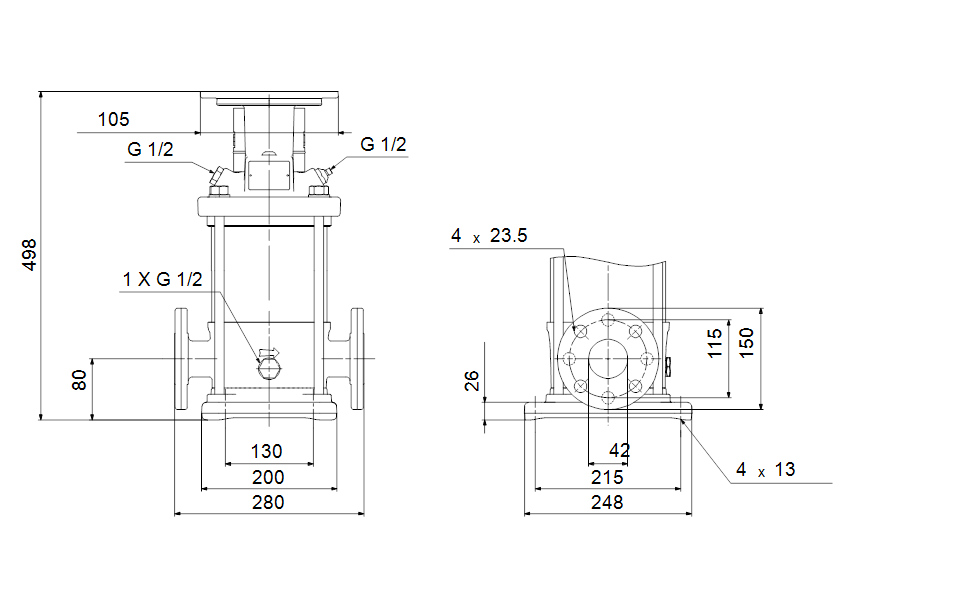

Dimensional Drawing
