Grundfos 92580079 - CRN 10-6 A-CX-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92580079

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92580079 CRN 10-6 A-CX-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial fluid transfer where high pressure and inline installation are required. Engineers and service technicians commonly use this model for pressurized systems and process applications.

Key features

  • Multistage centrifugal design for higher discharge pressure in a compact vertical footprint
  • Suitable for in-line and vertical installations, matching common shop-by-type configurations
  • Reliable service-oriented construction offering straightforward maintenance and replacement benefits

Applications

Typical uses include high-pressure boiler feed, water supply, reverse osmosis feed, and other industrial process duties requiring staged pressure boosting. Appropriate for service and repair shops handling centrifugal and multistage pump systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92580079

EAN 5715116578682
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter NONE
Gross weight 183.0 lb
IE efficiency IE3 88
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 289.4 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.875
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.885
Motor standard NEMA
Motor type WEG
Net weight 165.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 11.8/5.9 A
Rated flow 53.3 US gpm
Rated head 227 ft
Rated power - P2 3.7 kW
Rated speed 3500 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 6
Standard NEMA
Starting current 7.8
Type WEG
Type of connection TriClamp
Version A

Motor Curves

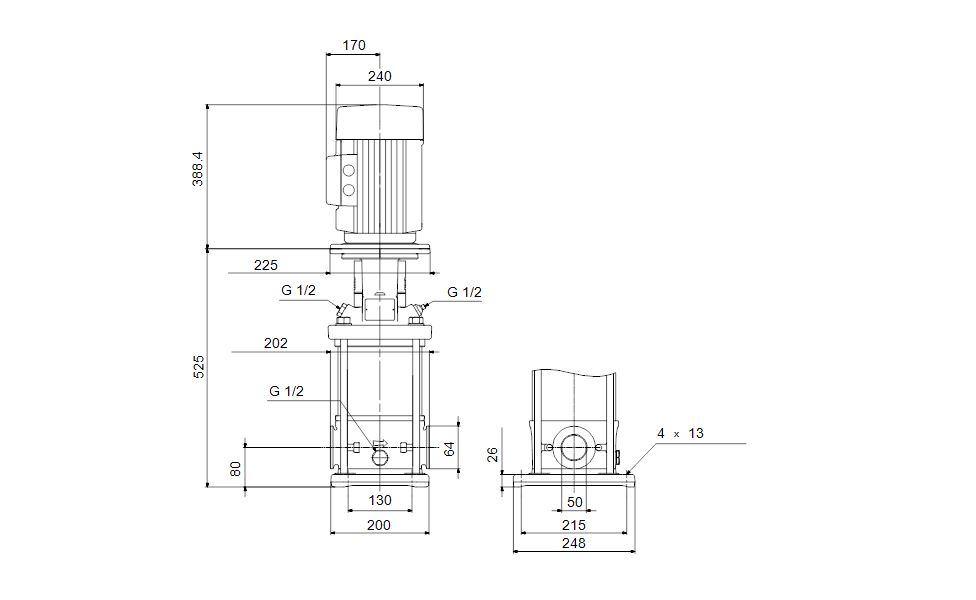

Dimensional Drawing

DWiring Diagram
