Grundfos 97736434 - CRN 10-5 H-G05-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,514.50
GRUNDFOSSKU: 97736434

Price:
Sale price$3,360.50 Regular price$5,875.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97736434 - CRN 10-5 H-G05-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model is part of the CRN series, known for its robust construction and versatility. It is ideal for applications requiring high pressure and flow rates, making it suitable for booster systems, water supply, and other industrial processes. The CRN 10-5 H-G05-A-E-HQQE features a compact design, ensuring easy installation and maintenance.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 287.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 231.6 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 123.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 194.6 ft
Rubber E
Sales region USA
Shaft Product name:CRN 10-5 H-G05-A-E-HQQE
Shaft seal HQQE
Stages 5
Standard NEMA
Version H

Motor Curves

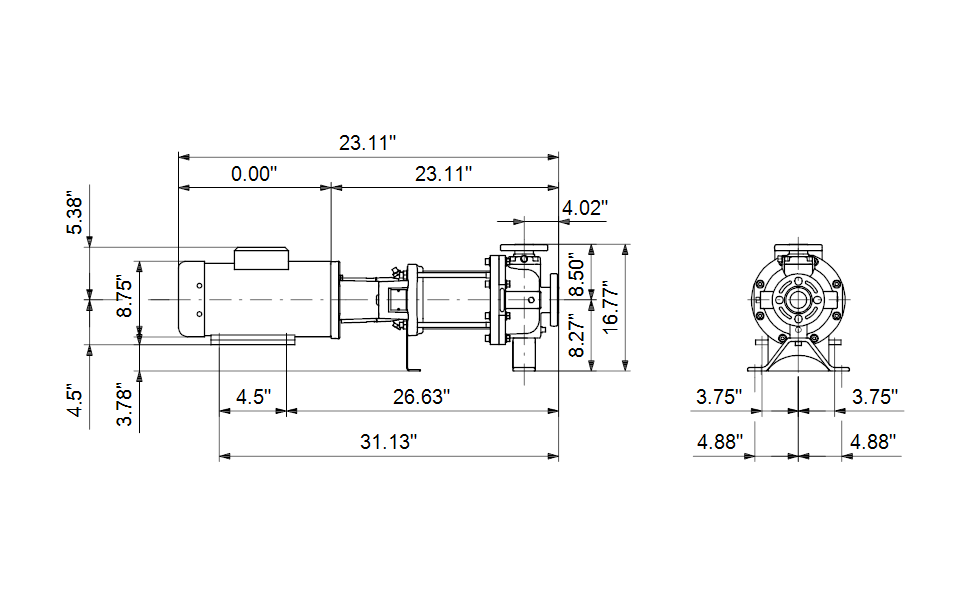

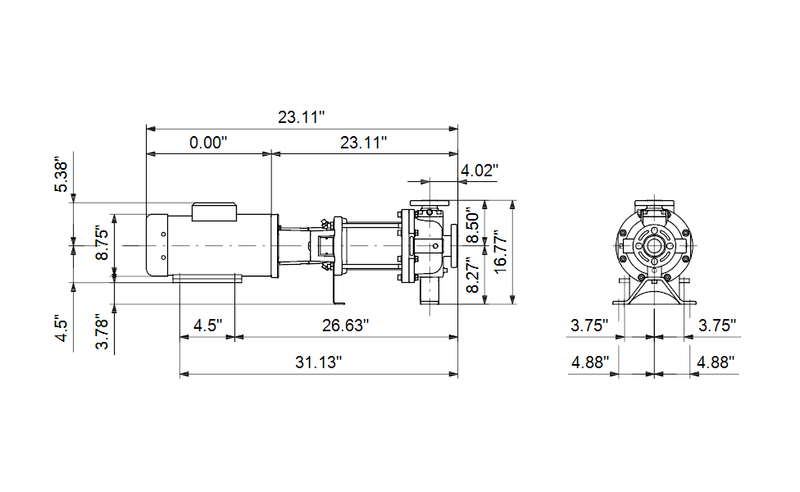

Dimensional Drawing
