Grundfos 92583231 - CRN 10-5 A-FGJ-L-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92583231

Price:
Sale price$13,286.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92583231 - CRN 10-5 A-FGJ-L-E-HQQE is a vertical multistage centrifugal pump suited for industrial and service applications where compact, high-pressure boosting is needed. Technicians and plant maintenance teams commonly use this model for circulation and pressure-boost duties.

Key features

  • Manufactured by Grundfos for industrial and service applications
  • Vertical, in-line multistage centrifugal design for space-saving installation
  • Delivers reliable staged pumping for consistent pressure and flow in process systems

Applications

Typical uses include high-pressure boosting, circulation in closed-loop systems, feedwater and transfer duties, and other industrial processes requiring compact multistage performance.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92583231

EAN 5715116625980
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 187.0 lb
IE efficiency IE3 88
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code L
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 241.8 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.875
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.885
Motor standard NEMA
Motor type WEG
Net weight 172.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 11.8/5.9 A
Rated flow 53.3 US gpm
Rated head 191.3 ft
Rated power - P2 3.7 kW
Rated speed 3500 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Starting current 7.8
Type WEG
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

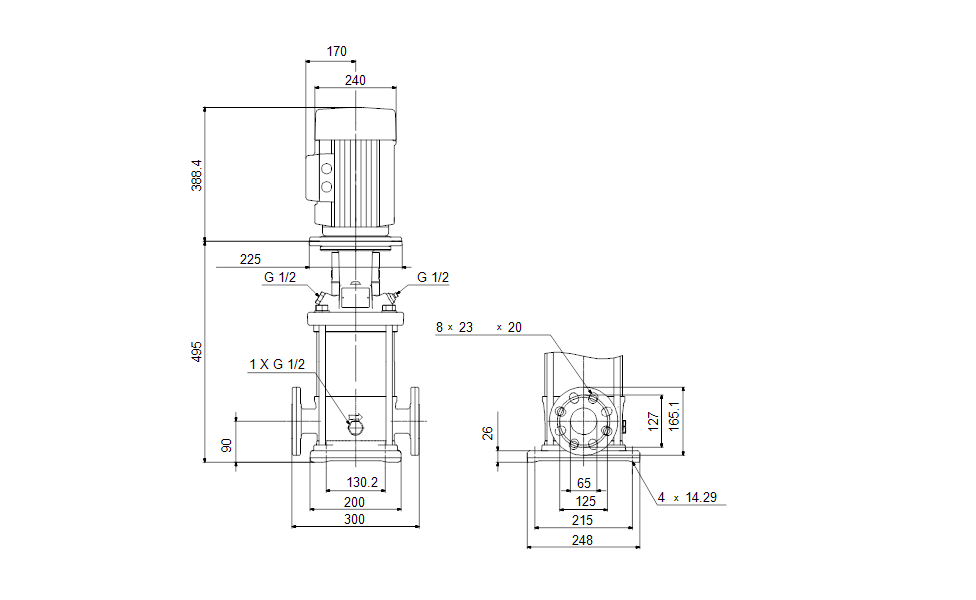

Dimensional Drawing

DWiring Diagram
