Grundfos 99379074 - CRN 10-4 P-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99379074

Price:
Sale price$10,320.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99379074 CRN 10-4 P-FGJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial service and high-pressure inline systems; technicians and maintenance teams commonly use it for pressurized fluid transfer and booster applications.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure performance
  • Listed for shop/service special applications including in-line and vertical installations
  • Provides reliable staged pumping for boosting, transfer, and process circulation

Applications

Suitable for industrial booster systems, process fluid transfer, high-pressure in-line service, and repeated duty pump replacement or rebuild scenarios.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99379074

EAN 5713828147479
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection PTO
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 152.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 192.6 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Motor type BALDOR
Net weight 135.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version P
Pumped liquid Water
Rated current 45115
Rated flow 53.3 US gpm
Rated head 150.3 ft
Rated power - P2 2.2 kW
Rated speed 3450 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type BALDOR
Type of connection DIN / ANSI / JIS
Version P

Motor Curves

Dimensional Drawing

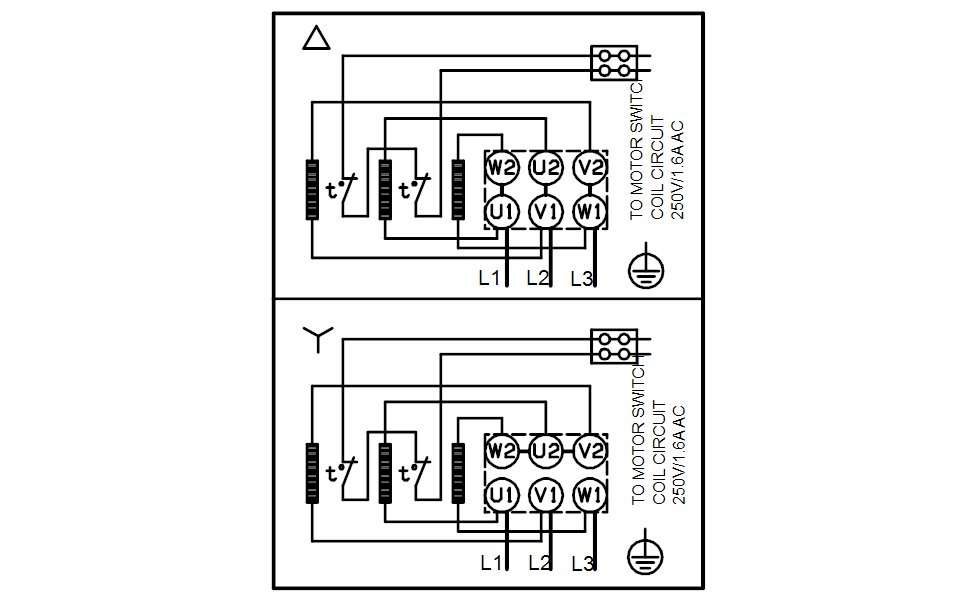

DWiring Diagram
