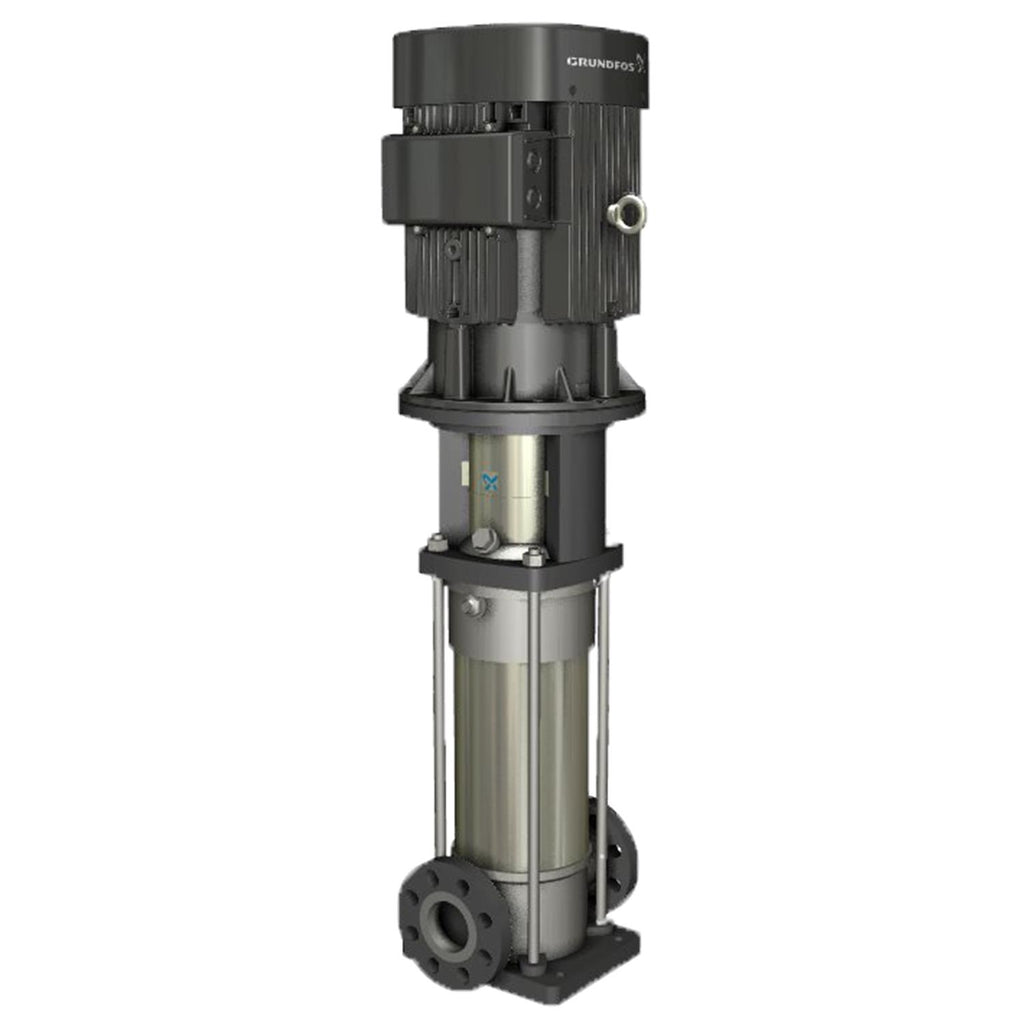

Grundfos 99323159 - CRN 10-4 M-FGJ-A-E | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99323159

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99323159 is a CRN 10-4 M-FGJ-A-E vertical multistage centrifugal pump designed for industrial and commercial service where compact, high-pressure pumping is required by maintenance and service professionals.

Key features

  • Manufactured by Grundfos for industrial applications and service replacement
  • Vertical, in-line multistage centrifugal design for higher pressure capability (tags indicate high pressure and vertical multistage)
  • Compact build reduces footprint while providing reliable staged pumping for transfer and boosting tasks

Applications

General uses include high-pressure water boosting, process transfer, boiler feed, and other industrial fluid handling where a vertical multistage centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99323159

EAN 5713827222764
Approvals EAC
Built-in motor protection PTC
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT130
Frequency converter NONE
Gross weight 190.0 lb
IE efficiency IE3 88
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 193.9 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at 1/2 load 0.877
Motor efficiency at 3/4 load 0.88
Motor efficiency at full load 1 87.5-88.5 %
Motor standard IEC
Motor type 100DA
Net weight 141.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.91-0.84
Pressure rating for connection PN 25
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 3511 rpm
Pump version M
Pumped liquid Water
Rated current 6.20-5.40 A
Rated flow 53.3 US gpm
Rated head 154.9 ft
Rated power - P2 3 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 380-480D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 4
Standard IEC
Starting current 860-1100 %
Type 100DA
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

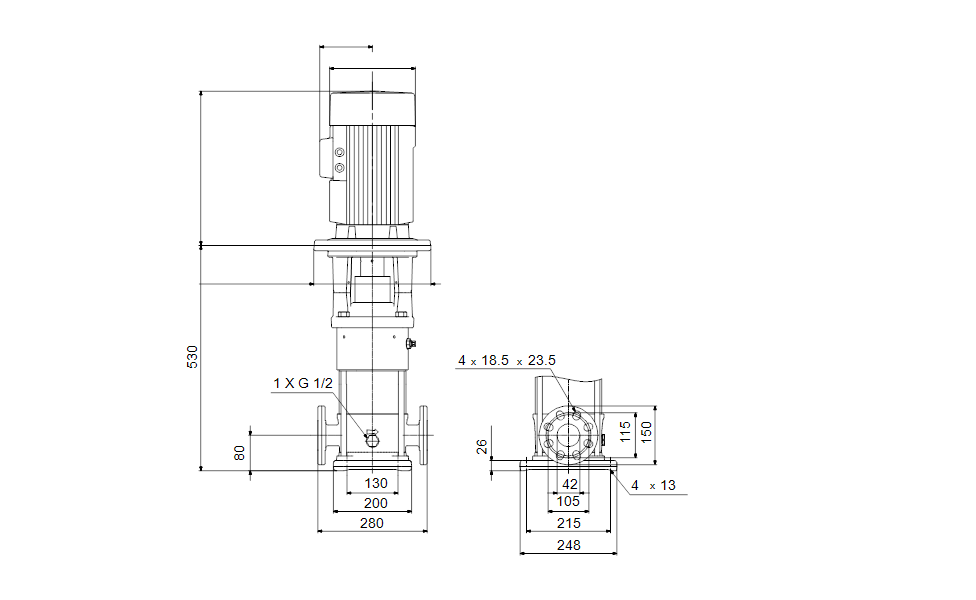

Dimensional Drawing

DWiring Diagram
