Grundfos 97736432 - CRN 10-4 H-G05-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,349.29
GRUNDFOSSKU: 97736432

Price:
Sale price$3,139.71 Regular price$5,489.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97736432 - CRN 10-4 H-G05-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97736432 - CRN 10-4 H-G05-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model ensures reliability and efficiency in fluid handling.

This pump is ideal for boosting pressure in water supply systems, irrigation, and other demanding applications. With its robust construction and advanced design, the CRN series is built to withstand the rigors of continuous operation while delivering optimal performance.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs. For more information on specifications and applications, feel free to reach out to our knowledgeable team.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 284.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 184.4 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 121.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 161.4 ft
Rubber E
Sales region USA
Shaft Product name:CRN 10-4 H-G05-A-E-HQQE
Shaft seal HQQE
Stages 4
Standard NEMA
Version H

Motor Curves

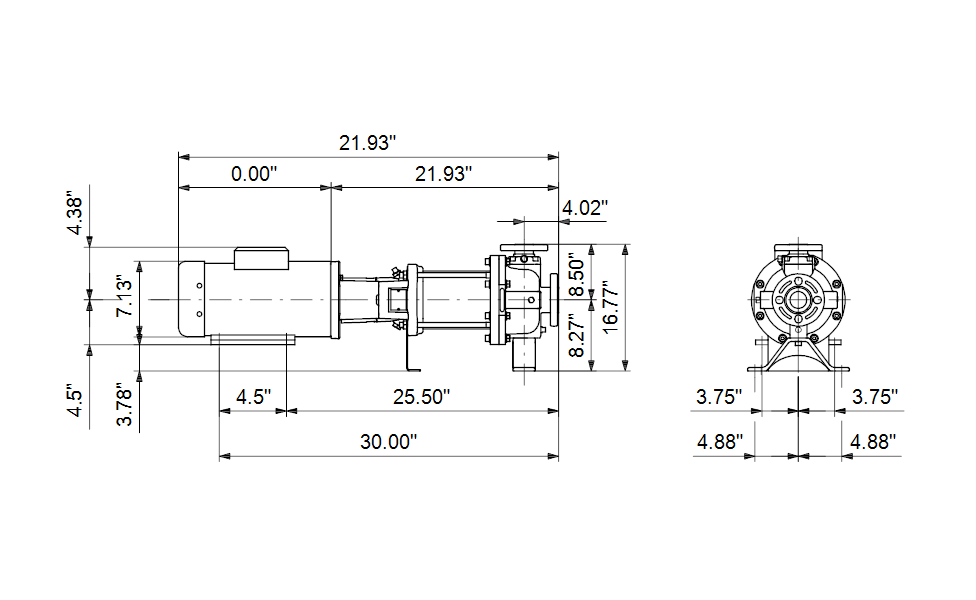

Dimensional Drawing
