Grundfos 97733330 - CRN 10-3 H-G22-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,090.16
GrundfosSKU: 97733330

Price:
Sale price$4,129.84 Regular price$7,220.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 10-3 H-G22-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
CRN3HP115/208-230V1-Phase60 HzTEFCStainless steel

The Grundfos 97733330 (CRN 10-3 H-G22-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 52.8US gpm at 112.2ft. Rated 115/208-230V, 1-Phase, 60 Hz.

Power
3HP
Voltage
115/208-230V
Phase
1-Phase
Max Flow
52.8US gpm
Max Head
112.2ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 10-3 H-G22-A-E-HQQE
Series: CRN
Model Code: CRN 10-3 H-G22-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 97733330
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 3HP
Voltage 115/208-230V
Phase 1-Phase
Frequency 60 Hz
Motor Speed 3450rpm
Pump Speed 3457rpm
Full Load Current 28/16-14A
Motor Type BALDOR
Motor Efficiency 75%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 52.8US gpm
Nominal Head 112.2ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 2inch
Outlet Connection 2inch
Pipe Pressure Rating PN 16
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/208-230V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 10-3 H-G22-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 300.0 lb
IE efficiency 0.75
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 139.4 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor efficiency at full load 1 0.75
Motor standard NEMA
Motor type BALDOR
n rpm F
Net weight 198.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 3 HP
Phase 1
Power (P2) required by pump 3 HP
Pressure rating for connection PN 16
Pressure sensor N
Pump 3 HP
Pump version H
Rated current 28/16-14 A
Rated flow 52.8 US gpm
Rated head 112.2 ft
Rated power - P2 3 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CRN 10-3 H-G22-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Type BALDOR
Version H

Motor Curves

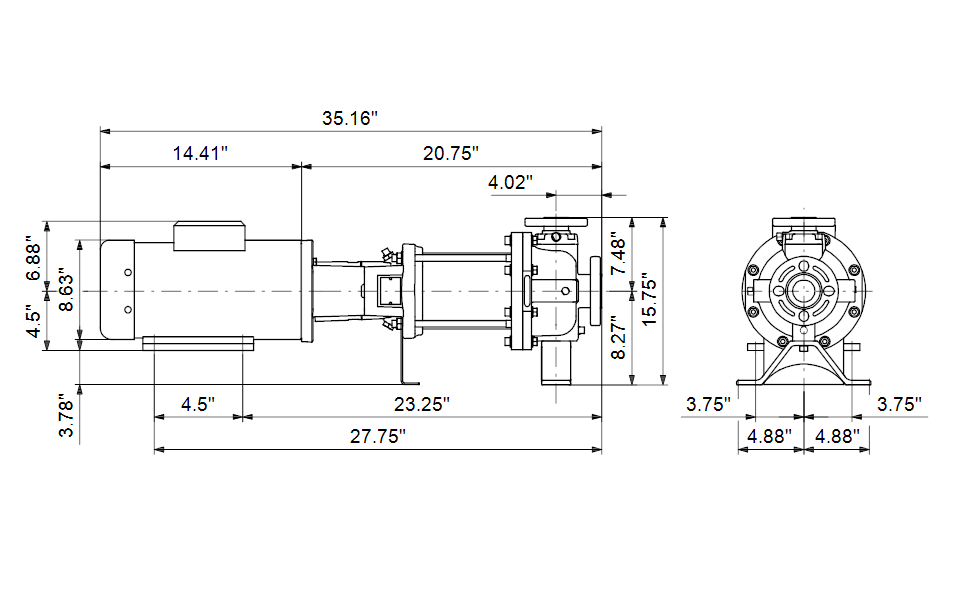

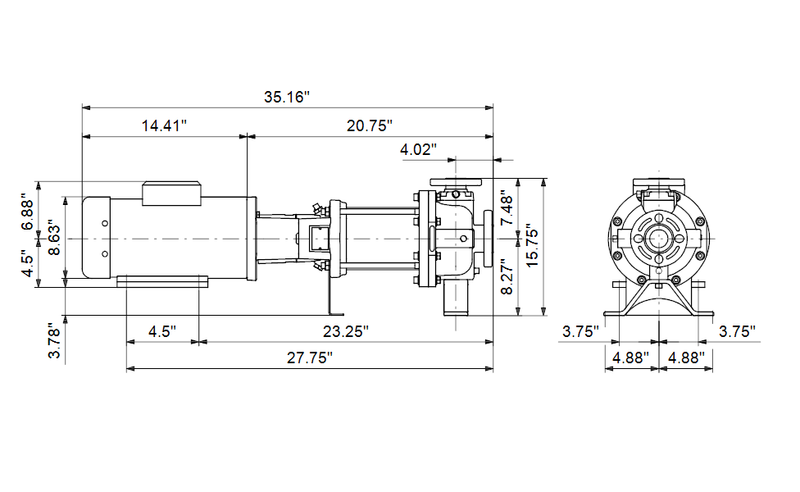

Dimensional Drawing

DWiring Diagram
