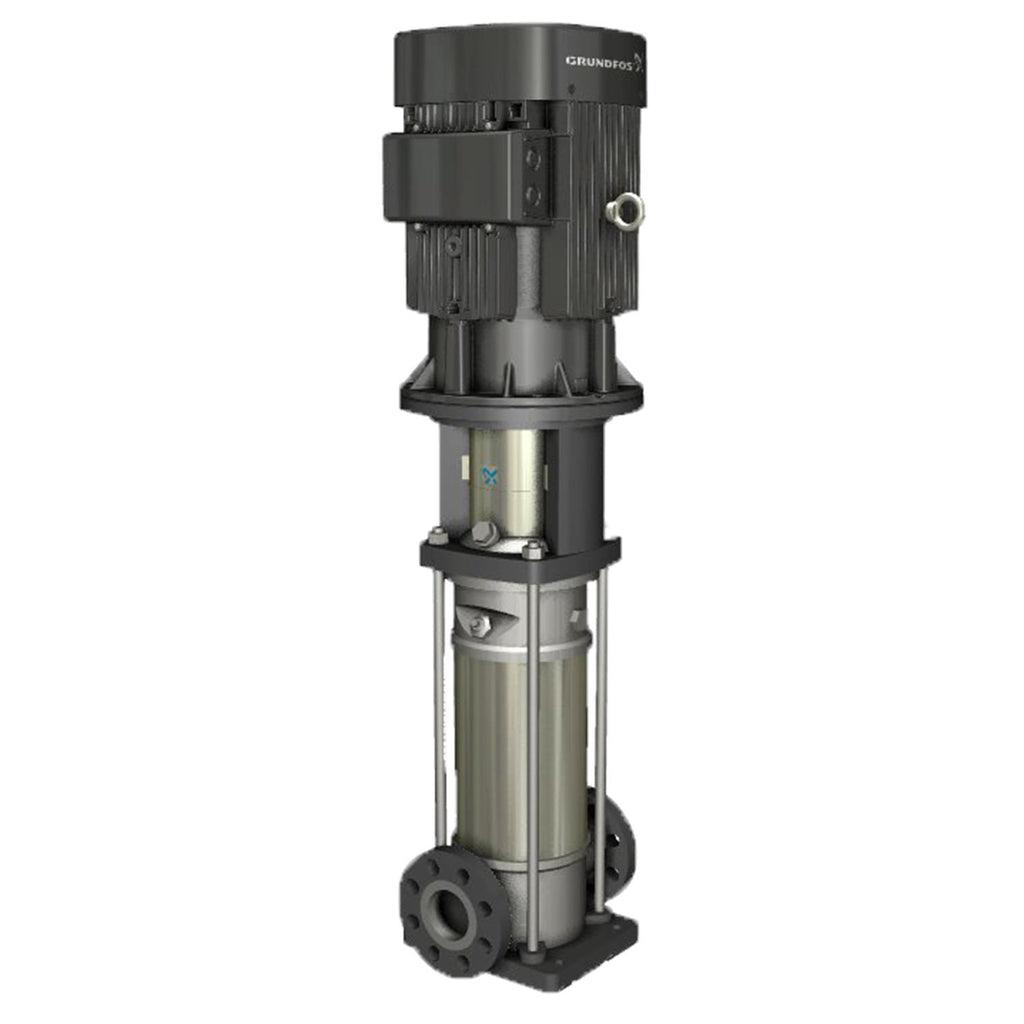

Grundfos 99405563 - CRN 10-2 A-FGJ-A-E-OQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99405563

Price:
Sale price$11,944.44
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99405563 - CRN 10-2 A-FGJ-A-E-OQQE is a vertical multistage centrifugal pump suited for industrial fluid handling and high-pressure in-line applications. Technicians and maintenance teams use this unit where reliable staged pumping and compact vertical footprint are required.

Key features

  • Designed by Grundfos for multistage centrifugal performance in high-pressure service
  • Vertical, in-line configuration for space-saving installations and easy alignment
  • Provides consistent staged pressure rise for boosted system reliability

Applications

Typical uses include booster systems, boiler feed, process water circulation, and other industrial high-pressure in-line duties where multistage vertical pumps are favored.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99405563

EAN 5713828580788
Actual impeller diameter 3.66 in
Approvals CE
Code for rubber E
Code for shaft seal OQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 92.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 95.81 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 77.2 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3466 rpm
Pump version A
Rated flow 53.3 US gpm
Rated head 72.51 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A
