Grundfos 97736487 - CRN 10-2 H-G22-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,065.10
GRUNDFOSSKU: 97736487

Price:
Sale price$2,759.90 Regular price$4,825.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97736487 - CRN 10-2 H-G22-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction and advanced technology, making it suitable for various fluid handling tasks. It is part of the CRN series, known for its versatility and efficiency in both single and multi-stage configurations. The CRN 10-2 H-G22-A-E-HQQE is ideal for applications requiring consistent pressure and flow rates.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of Grundfos centrifugal pumps, including booster, end suction, and horizontal multistage types, to find the perfect solution for your needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 203.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 93.51 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor standard NEMA
n rpm 3466rpm
Net weight 101.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 69.56 ft
Rubber E
Sales region USA
Shaft Product name:CRN 10-2 H-G22-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Version H

Motor Curves

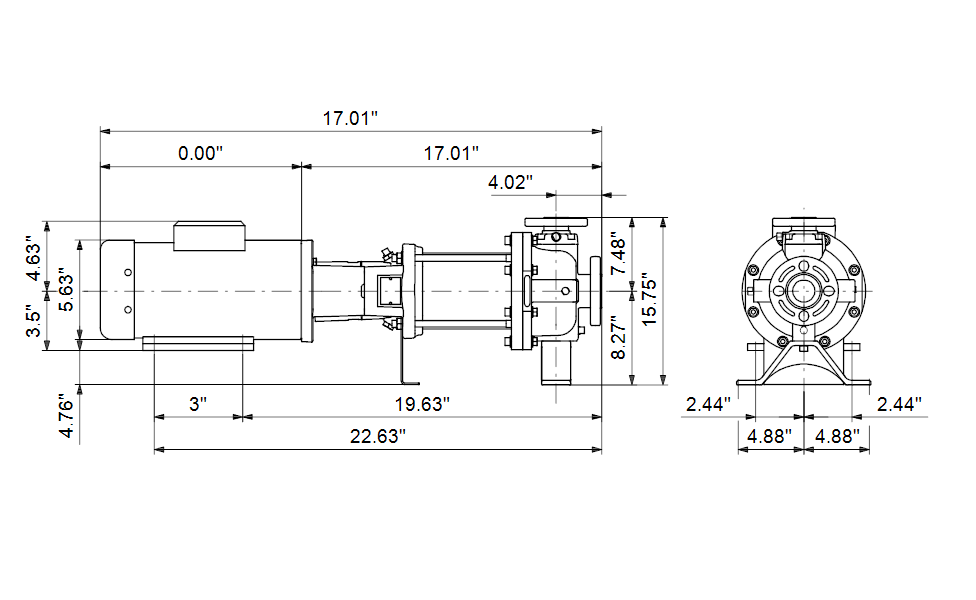

Dimensional Drawing
