Grundfos 97735923 - CRN 10-2 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,038.14
GRUNDFOSSKU: 97735923

Price:
Sale price$2,723.86 Regular price$4,762.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97735923 - CRN 10-2 H-GA-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97735923 - CRN 10-2 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

With its robust construction and advanced design, the CRN series is suitable for both horizontal and vertical installations, ensuring versatility in your pumping solutions. This model is part of the extensive range of Grundfos centrifugal pumps, which includes single and multi-stage options tailored to meet diverse operational needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97735923. If you encounter any difficulties in identifying the correct item, our team is here to help you navigate your options.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 108.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 93.51 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor standard NEMA
n rpm 3466rpm
Net weight 92.6 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 69.56 ft
Rubber V
Sales region USA
Shaft Product name:CRN 10-2 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Version H

Motor Curves

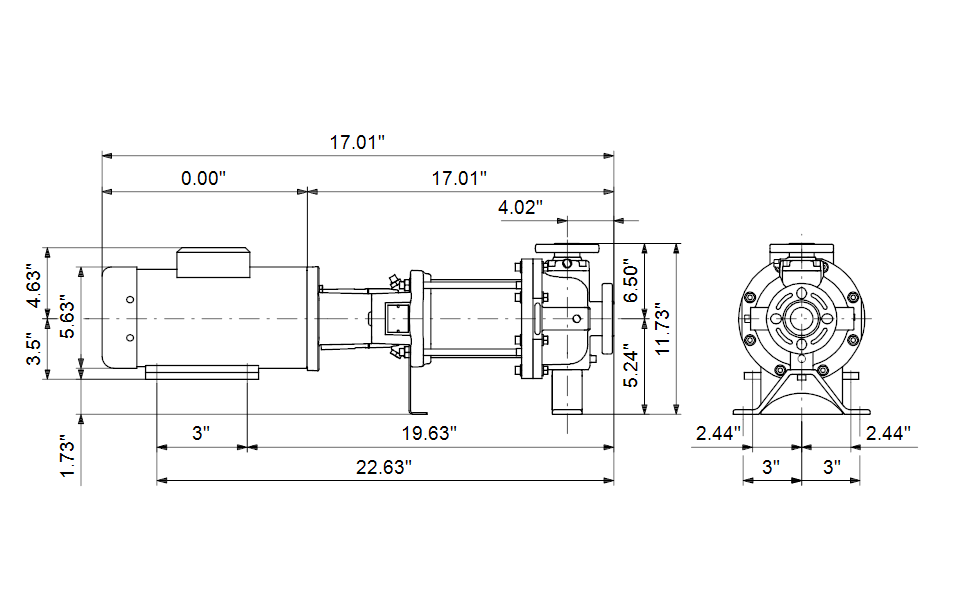

Dimensional Drawing
