Grundfos 96512202 - CRN 10-17 S-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $8,498.40
GRUNDFOSSKU: 96512202

Price:
Sale price$9,206.60 Regular price$17,705.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

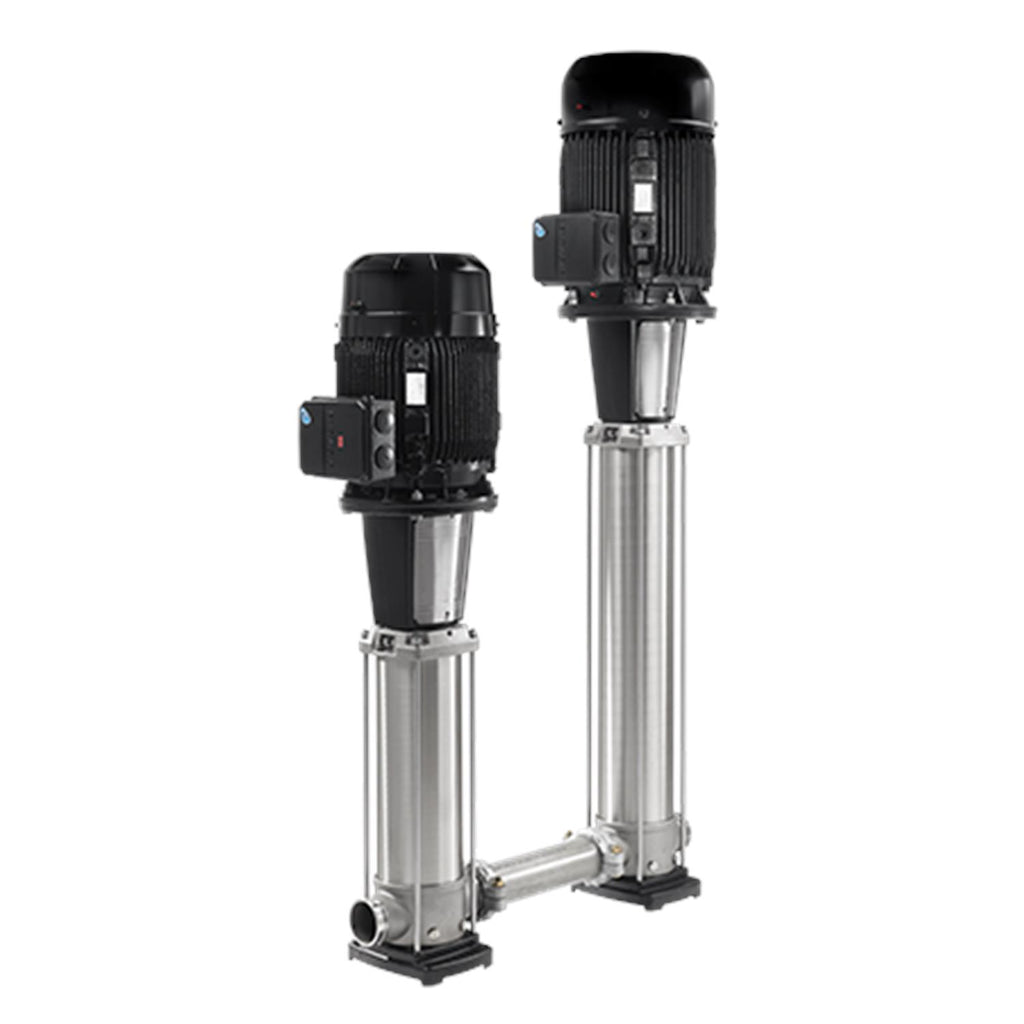

Grundfos 96512202 - CRN 10-17 S-P-A-E-HQQE is a vertical, multistage centrifugal pump suited for industrial fluid-handling systems and OEM replacements, used by maintenance, facility, and process technicians.

Key features

  • Manufactured by Grundfos for industrial applications and replacement use
  • Vertical multistage centrifugal design for compact, high-pressure service
  • Delivers consistent pressure and staged flow for booster and process reliability

Applications

Suitable for high-pressure water supply, boiler feed, HVAC boosting, industrial process lines, and general service where vertical multistage centrifugal pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96512202

EAN 5700396599168
Applications Industrial applications
Approvals CE
Approvals for drinking water ACS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 465.0 lb
Housing Stainless steel
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 17
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 725 psi / 250 °F
Maximum ambient temperature 140 °F
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 91.0-90.3 %
Motor efficiency at 3/4 load 91.2-91.4 %
Motor efficiency at full load 1 90.1-91.0 %
Motor type 160MB
Net weight 419.0 lb
Number of poles 2
Power (P2) required by pump 11 kW
Power factor 1 0.88-0.83
Product family CRN 10-SF
Pump 11 kW
Pump housing Stainless steel
Pump speed on which pump data are based 3529 rpm
Pump version S
Pumped liquid Water
Rated current 20
Rated flow 53.3 US gpm
Rated head 670 ft
Rated power - P2 11 kW
Rated speed 3530-3550 rpm
Rated voltage 3 x 400-480D/690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of connection 2 inch
Stages 17
Starting current 640-890 %
Type 160MB
Type of connection PJE
Version S

Motor Curves

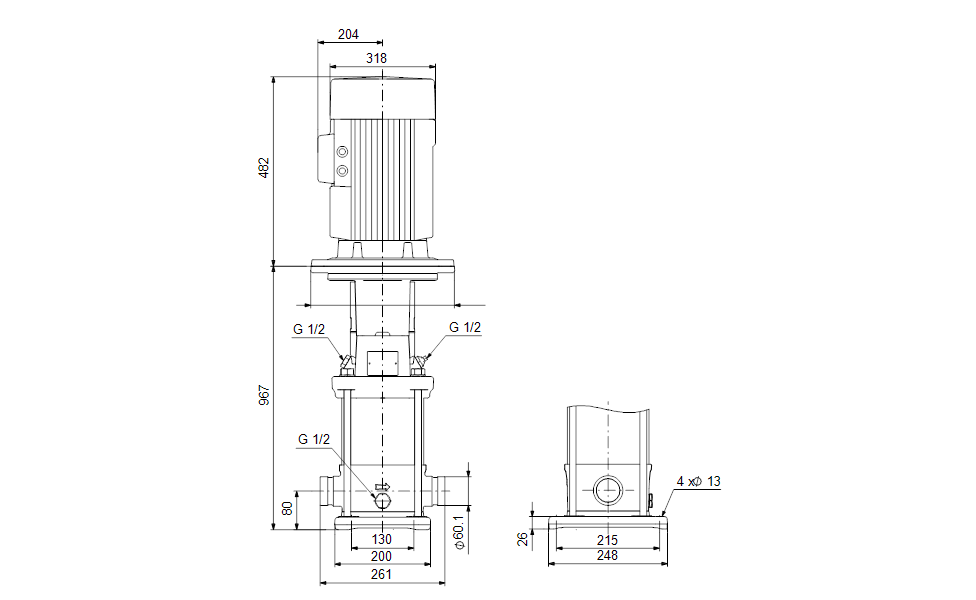

Dimensional Drawing

DWiring Diagram
