Grundfos 99273000 - CRN 10-14 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99273000

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99273000 is a vertical, multistage centrifugal pump (CRN 10-14 A-FGJ-A-E-HQQE) designed for industrial and commercial fluid transfer where high pressure and compact vertical installation are required. It suits technicians and maintenance teams replacing or servicing in-line and vertical multistage centrifugal systems.

Key features

  • Vertical multistage centrifugal design for space-saving, high-pressure pumping
  • Tags indicate suitability for in-line, high pressure and multi-stage service applications
  • Robust construction provides reliable operation and simplified serviceability for routine maintenance

Applications

Typical uses include high-pressure boost, boiler feed, process water transfer, and closed-loop circulation in industrial and commercial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99273000

EAN 5713826375447
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF300
Frequency converter NONE
Gross weight 379.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 682.4 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 91.2-90.3 %
Motor efficiency at 3/4 load 91.1-91.4 %
Motor efficiency at full load 1 90.2-91.0 %
Motor standard IEC
Motor type 160BA
Net weight 318.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Power factor 1 0.89-0.83
Pressure rating for connection PN 25
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3529 rpm
Pump version A
Pumped liquid Water
Rated current 36
Rated flow 53.3 US gpm
Rated head 555.8 ft
Rated power - P2 11 kW
Rated speed 3520-3550 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 14
Standard IEC
Starting current 580-890 %
Type 160BA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

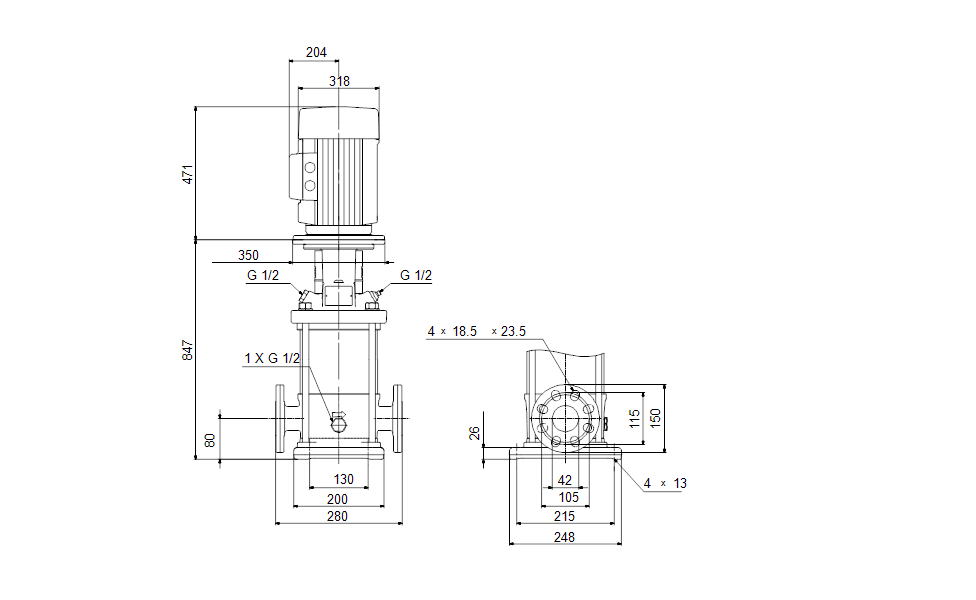

Dimensional Drawing

DWiring Diagram
