Grundfos 98054048 - CRN 10-14 P-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98054048

Price:
Sale price$13,248.61
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98054048 - CRN 10-14 P-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure systems.

This model features a robust construction that ensures durability and long service life, while its multistage design allows for optimal performance in demanding environments. Whether you need to transport water or other fluids, the CRN 10-14 P-P-A-E-HQQE is built to meet your needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98054048. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628180842
Actual impeller diameter 3.66 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange size for motor 213TC
Frequency converter NONE
Gross weight 214.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 669.3 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 99.2 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3470 rpm
Pump version P
Rated flow 53.3 US gpm
Rated head 512.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 14
Standard NEMA
Type of connection PJE
Version P

Motor Curves

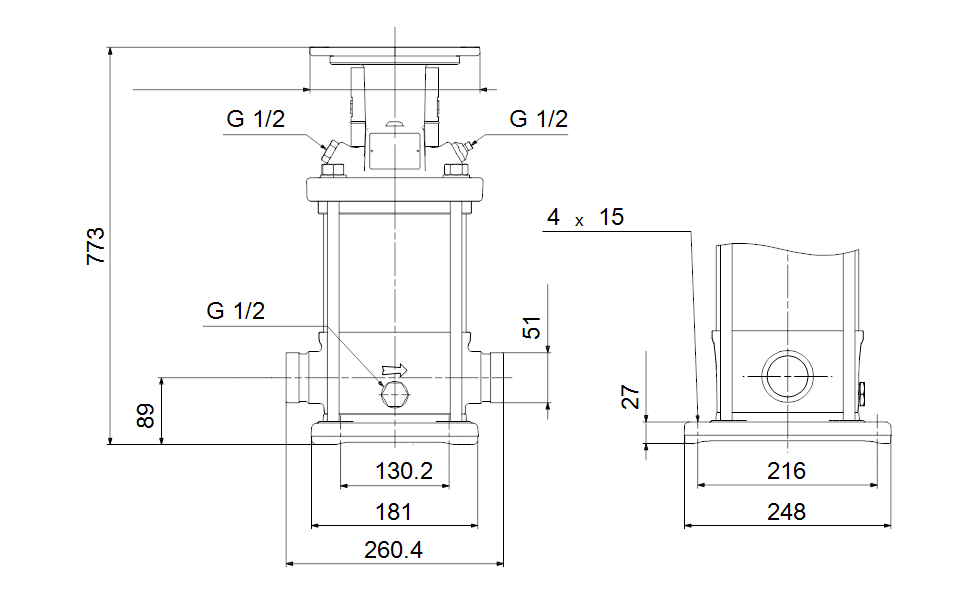

Dimensional Drawing
