Grundfos 99139060 - CRN 10-12 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99139060

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99139060 is a vertical multistage centrifugal pump assembly suited for high-pressure inline service. It fits systems requiring compact vertical mounting and reliable multi-stage boosting, commonly used by industrial maintenance and service technicians.

Key features

  • Designed as a vertical multistage centrifugal unit for space-saving installations
  • Commonly used for high-pressure and inline centrifugal pump applications
  • Provides staged pressure boosting for consistent flow in industrial systems

Applications

Typical uses include boiler feed, pressure boosting, industrial process circulation, and high-pressure water transfer in commercial and plant environments.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99139060

EAN 5712607474225
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 265.0 lb
IE efficiency IE3 90
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 584 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 0.921
Motor efficiency at 3/4 load 0.916
Motor efficiency at full load 1 0.902
Motor standard IEC
Motor type 132EA
Net weight 216.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.90-0.82
Pressure rating for connection PN 50
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3525 rpm
Pump version A
Pumped liquid Water
Rated current 10.8-9.60 A
Rated flow 53.3 US gpm
Rated head 469.8 ft
Rated power - P2 7.5 kW
Rated speed 3490-3530 rpm
Rated voltage 3 x 500-600D V
Real Time Real time availability: Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard IEC
Starting current 680-1050 %
Type 132EA
Type of connection PJE
Version A

Motor Curves

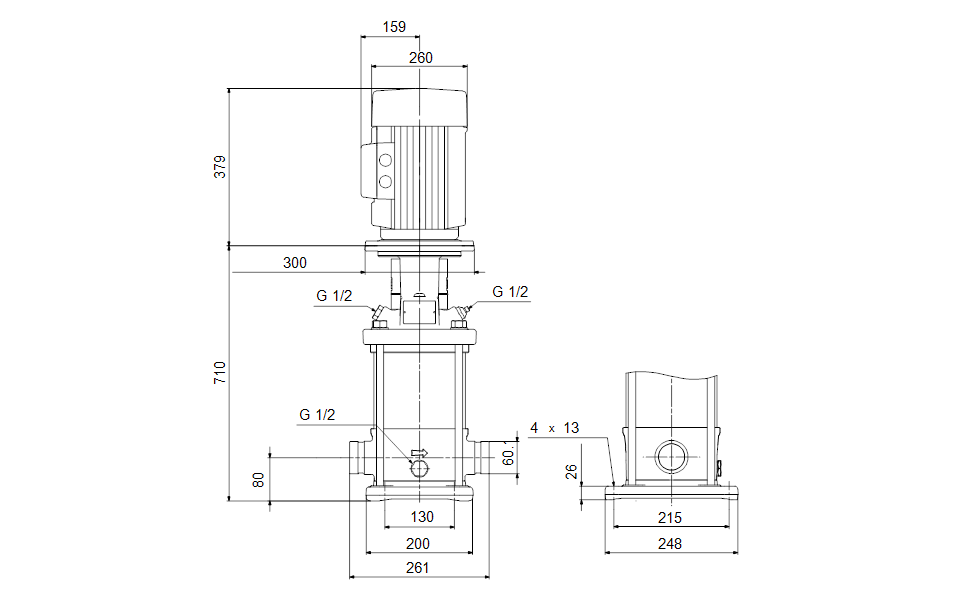

Dimensional Drawing
