Grundfos 97736440 - CRN 10-10 H-G05-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,334.98
GRUNDFOSSKU: 97736440

Price:
Sale price$4,457.02 Regular price$7,792.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97736440 - CRN 10-10 H-G05-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97736440 - CRN 10-10 H-G05-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

With its robust construction and advanced design, the CRN 10-10 model ensures optimal operation in demanding environments. This pump is part of the Grundfos Centrifugal Pumps range, which includes both single and multi-stage options, and is categorized under horizontal multistage pumps.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97736440. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 302.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 468.2 ft
Maximum operating pressure 232.06 psi
Model A
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 139.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 358.9 ft
Rubber E
Sales region USA
Shaft Product name:CRN 10-10 H-G05-A-E-HQQE
Shaft seal HQQE
Stages 10
Standard NEMA
Version H

Motor Curves

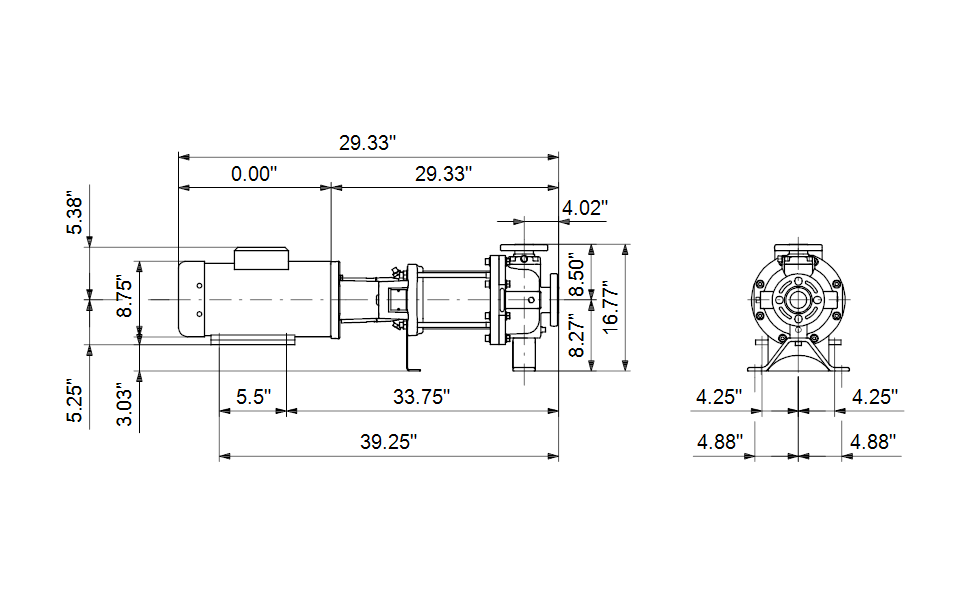

Dimensional Drawing
