Grundfos 99472426 - CRN 10-1 M-FGJ-A-E | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99472426

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

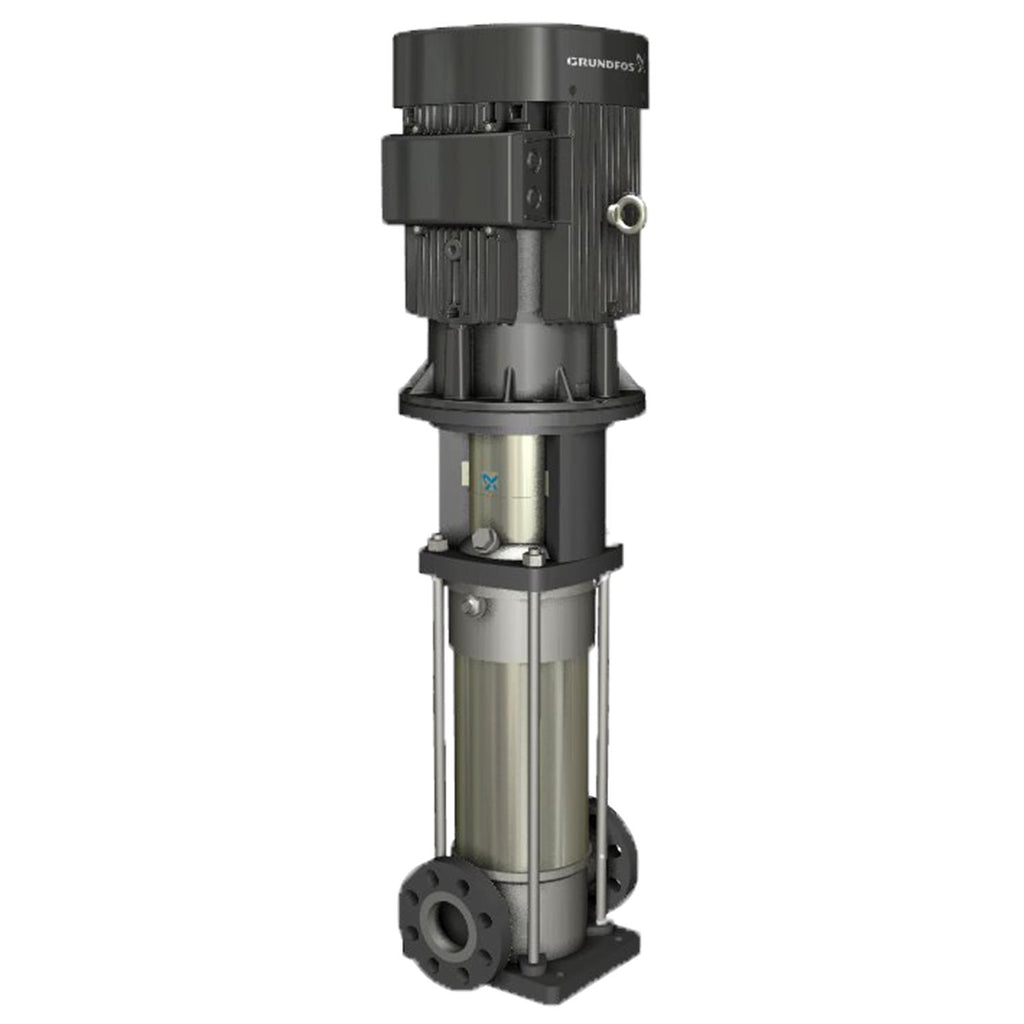

CRN 10-1 M-FGJ-A-E Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713829677098
Approvals EAC
Built-in motor protection NONE
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 119.0 lb
IE efficiency IE3 77
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 32.48 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor efficiency at 1/2 load 0.795
Motor efficiency at 3/4 load 0.815
Motor efficiency at full load 1 0.778
Motor standard IEC
Motor type 71BA
Net weight 90.4 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.80-0.70
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 2873 rpm
Pump version M
Pumped liquid Water
Rated current 2.50/1.44 A
Rated flow 44 US gpm
Rated head 23.3 ft
Rated power - P2 0.55 kW
Rated speed 2830-2850 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 2
Standard IEC
Starting current 580-620 %
Type 71BA
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

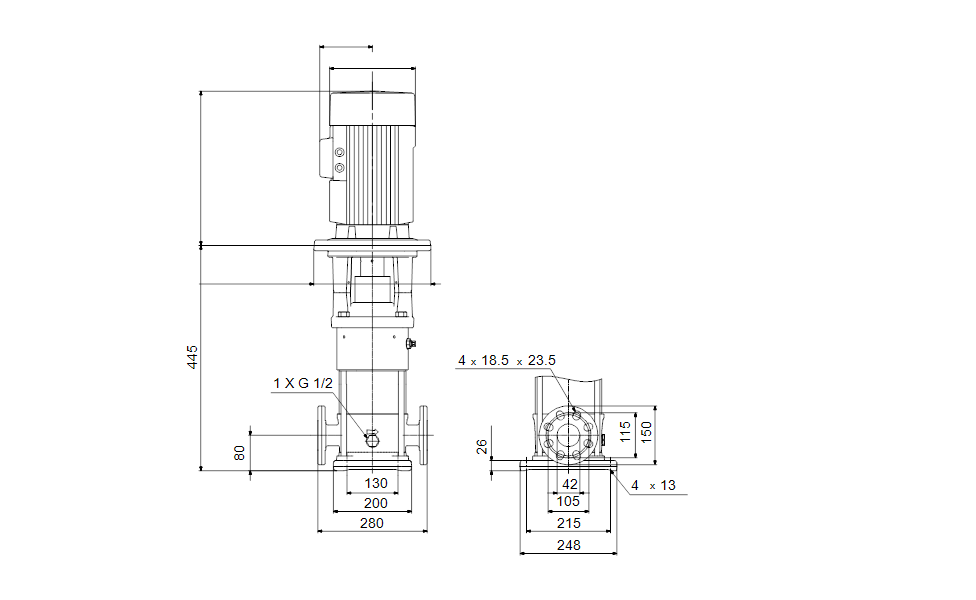

Dimensional Drawing

DWiring Diagram
