Grundfos 99650640 - CRN 1-7 EOY-CX-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99650640

Price:
Sale price$11,980.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99650640 - CRN 1-7 EOY-CX-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99650640 - CRN 1-7 EOY-CX-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 1-7 EOY-CX-A-E-HQQE model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for various industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble finding the right item, our team is here to help you navigate your options.

EAN 5713832437184
Approvals EAC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT100
Frequency converter NONE
Gross weight 53.0 lb
IE efficiency IE3 77
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 208 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT100
Motor efficiency at 1/2 load 0.817
Motor efficiency at 3/4 load 0.827
Motor efficiency at full load 1 0.77
Motor standard IEC
Motor type 80AA
Net weight 46.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.86-0.65
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3474 rpm
Pump version EOY
Pumped liquid Water
Rated current 2
Rated flow 9.69 US gpm
Rated head 160.1 ft
Rated power - P2 0.75 kW
Rated speed 3410-3480 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 7
Standard IEC
Starting current 600-740 %
Type 80AA
Type of connection TriClamp
Version EOY

Motor Curves

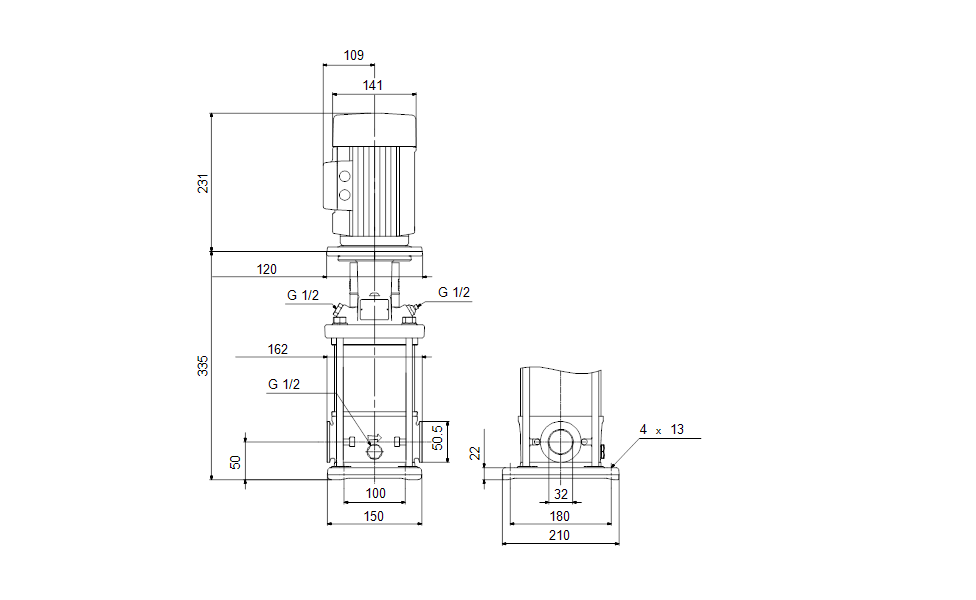

Dimensional Drawing

DWiring Diagram
