Grundfos 98864205 - CRN 1-7 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98864205

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98864205 - CRN 1-7 A-P-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and process applications. It fits inline, high-pressure systems and is used by plant maintenance, service technicians, and OEMs.

Key features

  • Vertical, multistage centrifugal design for compact, high-head performance
  • Inline configuration suitable for high-pressure and in-line system installations
  • Engineered for reliable service and repeatable performance in industrial process applications

Applications

Typical uses include high-pressure water transfer, boiler feed, process circulation, industrial wash systems, and water treatment or booster duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98864205

EAN 5712602591590
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT100
Frequency converter NONE
Gross weight 52.9 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 208 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT100
Motor efficiency at 1/2 load 84.5-83.0 %
Motor efficiency at 3/4 load 84.4-84.6 %
Motor efficiency at full load 1 77.0-77.0 %
Motor standard IEC
Motor type 80AA
Net weight 46.8 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.86-0.77
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3474 rpm
Pump version A
Pumped liquid Water
Rated current 2
Rated flow 9.69 US gpm
Rated head 160.1 ft
Rated power - P2 0.75 kW
Rated speed 3410-3470 rpm
Rated voltage 3 x 220-255D/380-440Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 7
Standard IEC
Starting current 600-740 %
Type 80AA
Type of connection PJE
Version A

Motor Curves

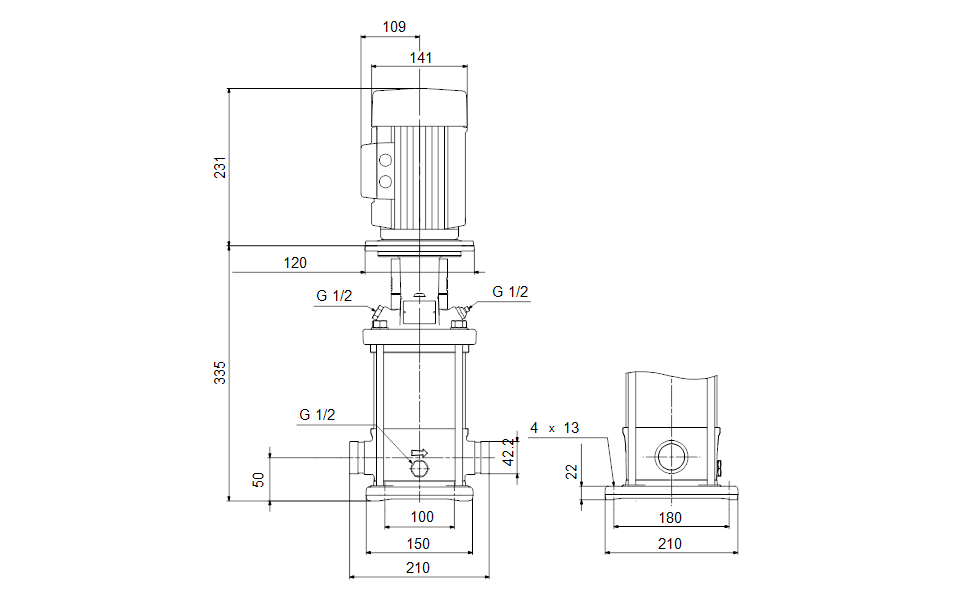

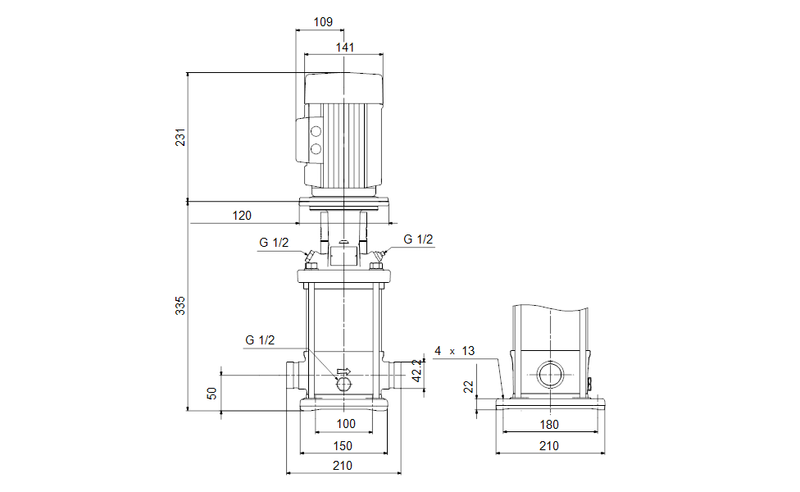

Dimensional Drawing

DWiring Diagram
