Grundfos 98160740 - CRN 1-36 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,799.20
GRUNDFOSSKU: 98160740

Price:
Sale price$4,115.80 Regular price$7,915.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160740 - CRN 1-36 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98160740 - CRN 1-36 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

This model is part of the CRN series, known for its robust construction and versatility. It is suitable for various fluid handling tasks, ensuring optimal operation in demanding environments. The CRN 1-36 A-FGJ-A-V-HQQV is particularly effective in applications requiring consistent pressure and flow rates.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710629588081
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT115
Frequency converter NONE
Gross weight 118.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 736.6 ft
Maximum operating pressure 25 bar
Model A
Motor FT115
Motor standard IEC
Net weight 107.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 2899 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 565 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 36
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

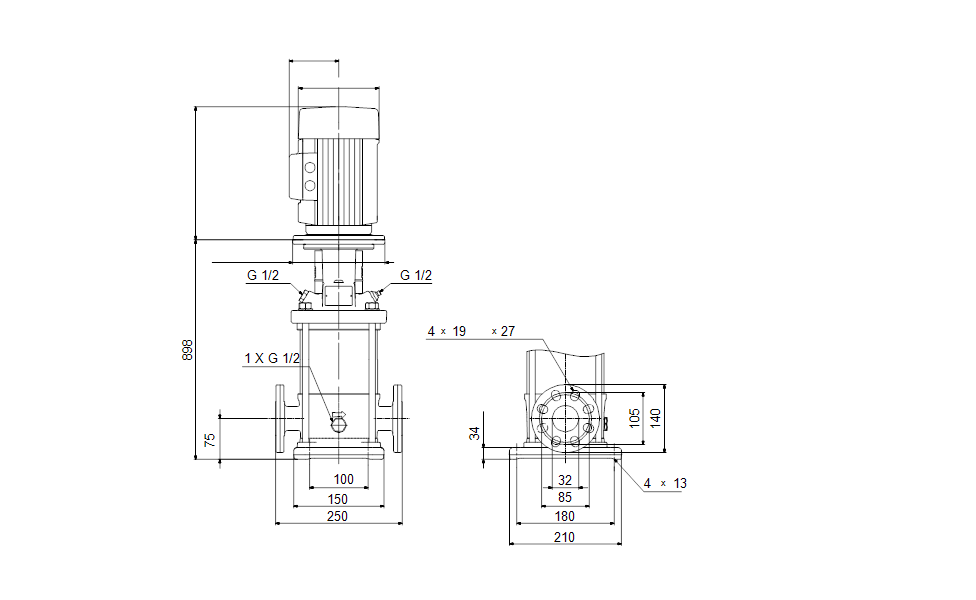

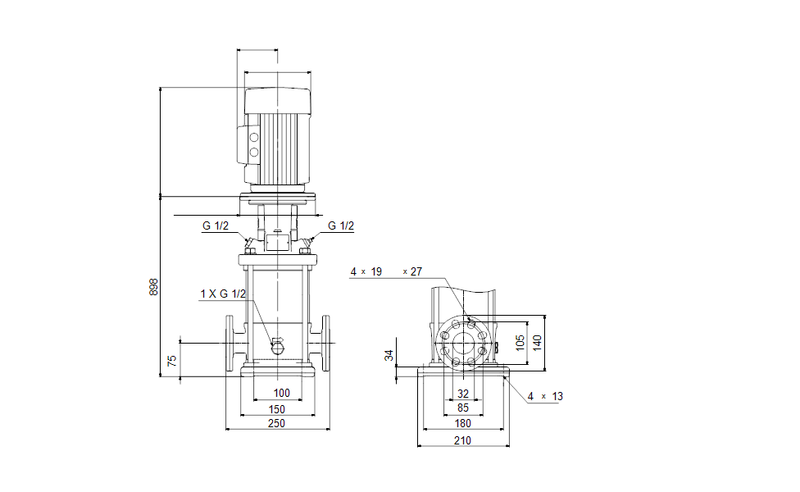

Dimensional Drawing
