Grundfos 98160691 - CRN 1-30 A-P-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $3,260.64
GRUNDFOSSKU: 98160691

Price:
Sale price$3,532.36 Regular price$6,793.00
or Call for most up to date lead times. (781) 281-8905

Description

CRN 1-30 A-P-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5710629587596
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT115
Frequency converter NONE
Gross weight 91.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 610.3 ft
Maximum operating pressure 25 bar
Model A
Motor FT115
Motor standard IEC
Net weight 84.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Pressure rating for connection PN 50
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 2896 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 463.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 30
Standard IEC
Type of connection PJE
Version A

Motor Curves

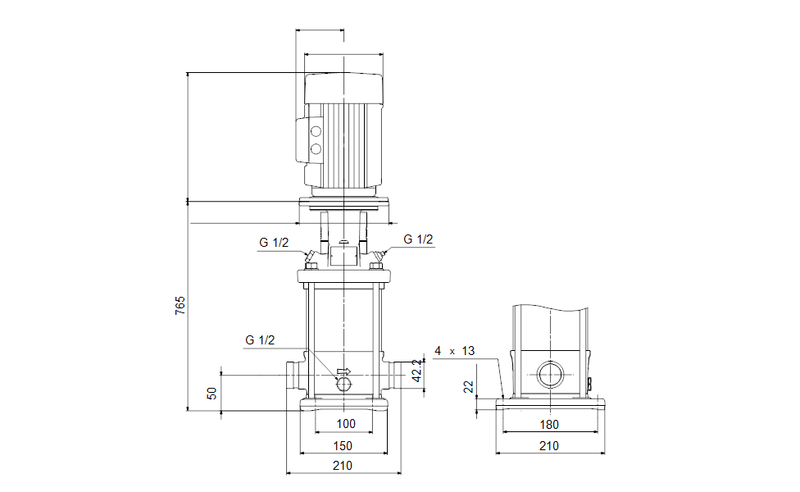

Dimensional Drawing
