Grundfos 97691372 - CRN 1-3 O-CX-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97691372

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 1-3 O-CX-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via Tri-Clamps.

EAN 5710621616218
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 42.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 90.23 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 36.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3447 rpm
Pump version O
Pumped liquid Water
Rated flow 9.69 US gpm
Rated head 71.85 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 3
Standard IEC
Type of connection TriClamp
Version O

Motor Curves

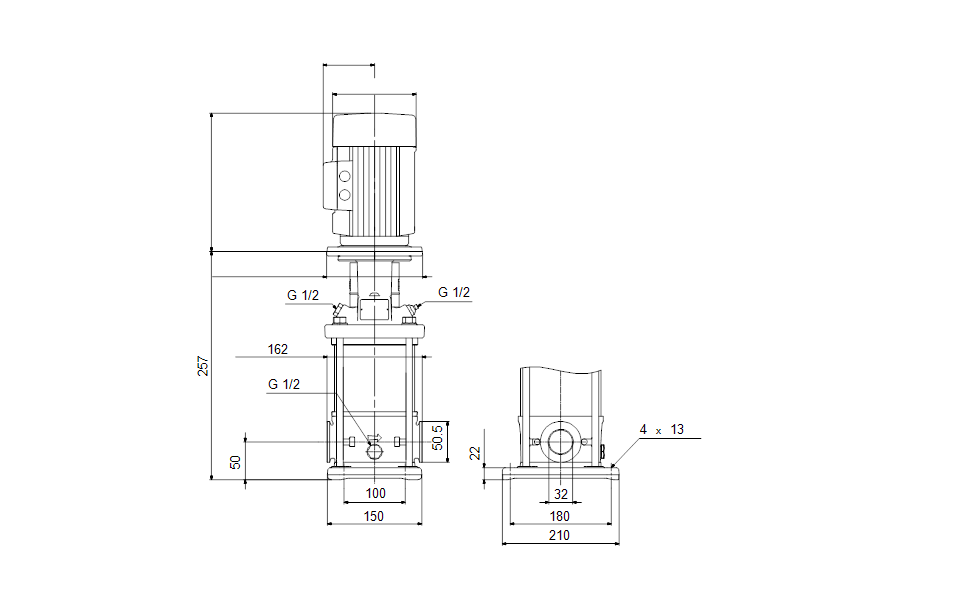

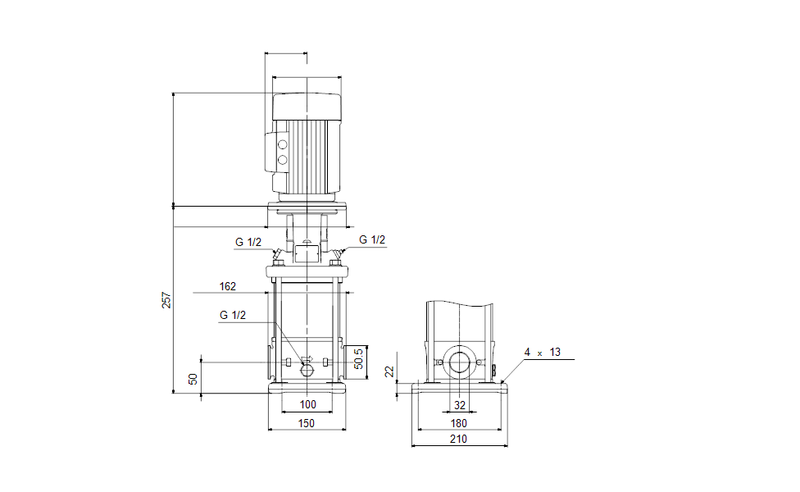

Dimensional Drawing
