Grundfos 96836037 - CRN 1-3 BM-FGJ-A-K | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96836037

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96836037 - CRN 1-3 BM-FGJ-A-K is a vertical, multistage centrifugal inline pump used where compact, high-pressure fluid handling is required. It fits applications needing stainless-steel wetted parts and combined DIN-ANSI-JIS flange connections.

Key features

  • Wetted parts in high-grade stainless steel for corrosion resistance
  • Inline, vertical multistage centrifugal design suited for high-pressure service
  • Compact inline footprint provides easier installation and reduced piping complexity

Applications

Suitable for pressure boosting, boiler feed, industrial process water, HVAC systems, and other high-pressure inline transfer duties. Keep claims general and verify system compatibility before ordering.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96836037

EAN 5700311564691
Code for rubber K
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 85.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 63 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 60.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 2873 rpm
Pump version bm
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 51.18 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard IEC
Type of connection DIN / ANSI / JIS
Version bm

Motor Curves

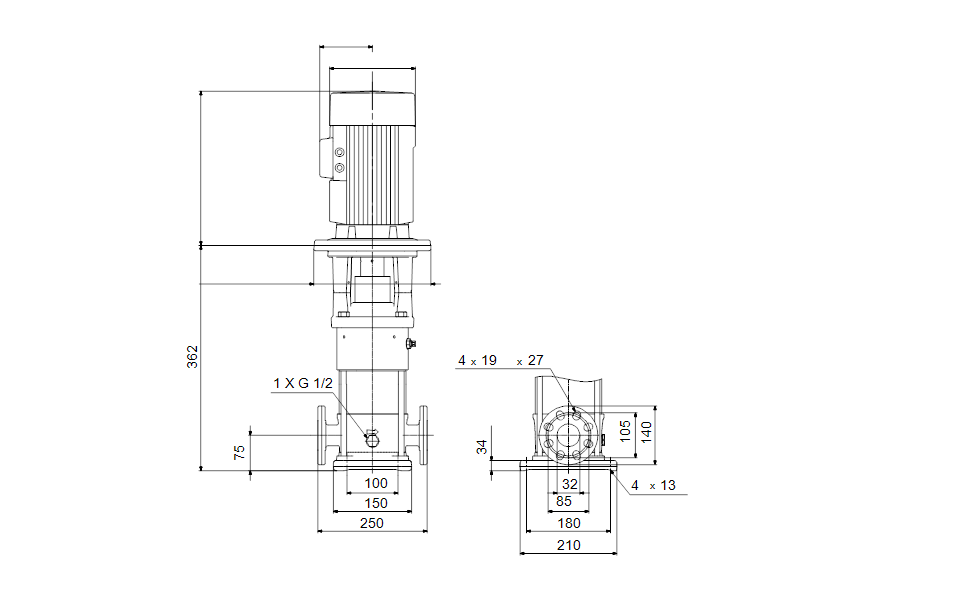

Dimensional Drawing
