Grundfos 99111814 - CRN 1-21 M-FGJ-A-F | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99111814

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99111814 - CRN 1-21 M-FGJ-A-F is a vertical, inline multistage centrifugal pump designed for service and industrial applications where compact, high-pressure fluid handling is needed.

Key features

  • Vertical, multistage centrifugal design with inlet and outlet ports on the same level for inline installation
  • Wet parts in high-grade stainless steel for corrosion resistance and durability
  • Delivers reliable high-pressure performance for boosting, transfer, and circulation duties

Applications

Typical uses include water booster systems, industrial process circulation, boiler feed, and general high-pressure inline pumping tasks. Suitable for service and maintenance replacement in systems calling for a multistage vertical inline pump.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99111814

EAN 5712606980987
Approvals CE
Code for rubber F
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 80.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 151.9 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 66.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 1700 rpm
Pump version M
Rated flow 4.84 US gpm
Rated head 110.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 21
Standard NEMA
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

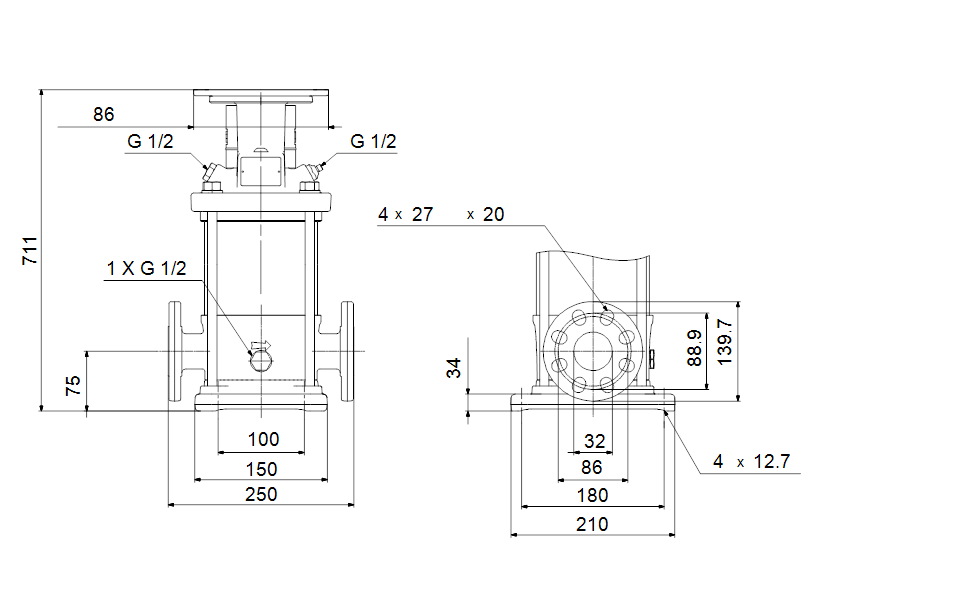

Dimensional Drawing
