Grundfos 99829756 - CRN 1-2 F-CX-X-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99829756

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

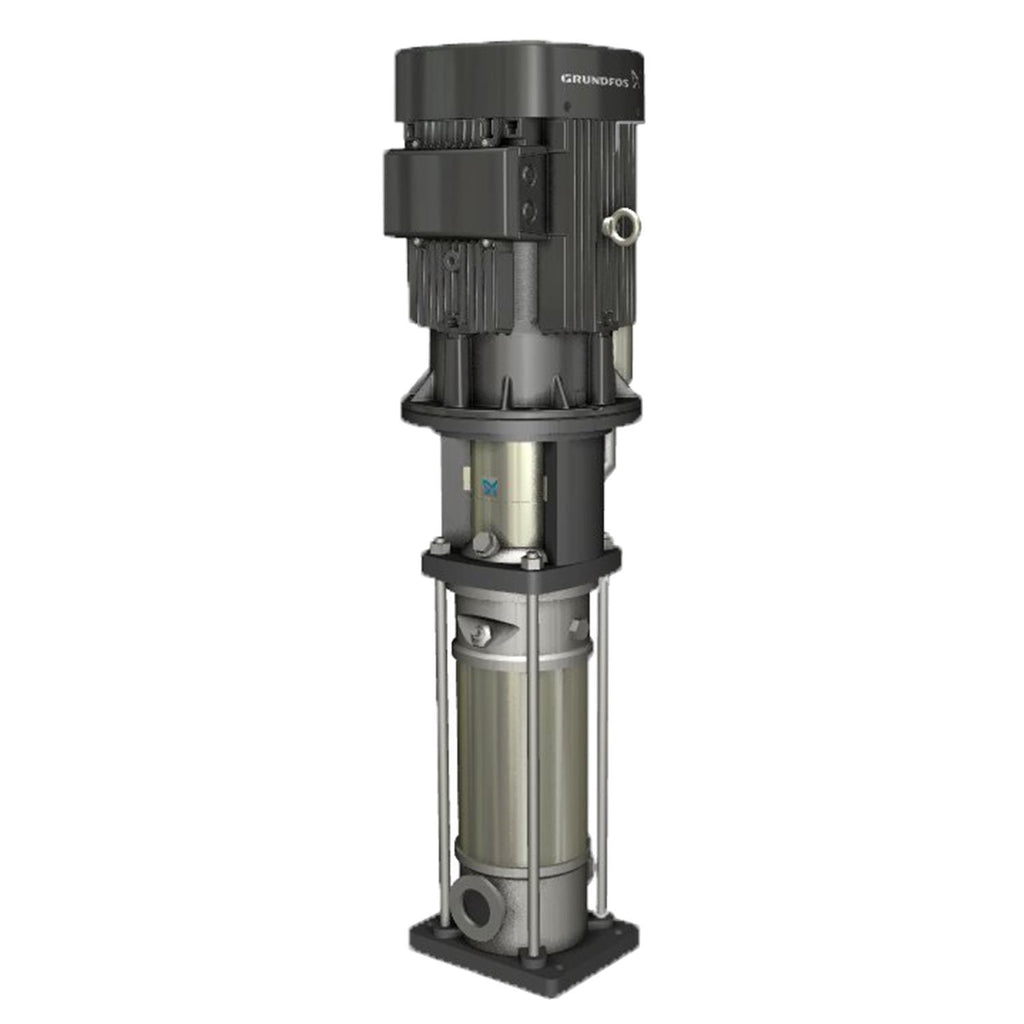

CRN 1-2 F-CX-X-F-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via Tri-Clamps. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713834876165
Approvals CURUS
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 56C
Frequency converter NONE
Gross weight 29.6 kg
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range -10 .. 180 °C
Low NPSH N
Mains frequency 60 Hz
Material code X
Max pressure at stated temp 25 bar / 180 °C
Maximum ambient temperature 40 °C
Maximum head 18.1 m
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.7
Motor standard NEMA
Motor type BALDOR
Net weight 24.6 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.25 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.25 kW
Pump speed on which pump data are based 3425 rpm
Pump version F
Pumped liquid Water
Rated current 1.4/0.7 A
Rated flow 2.2 m³/h
Rated head 13.8 m
Rated power - P2 0.25 kW
Rated speed 3450 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 20 °C
Service factor 1.35
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 3
Standard NEMA
Type BALDOR
Type of connection TriClamp
Version F

Motor Curves

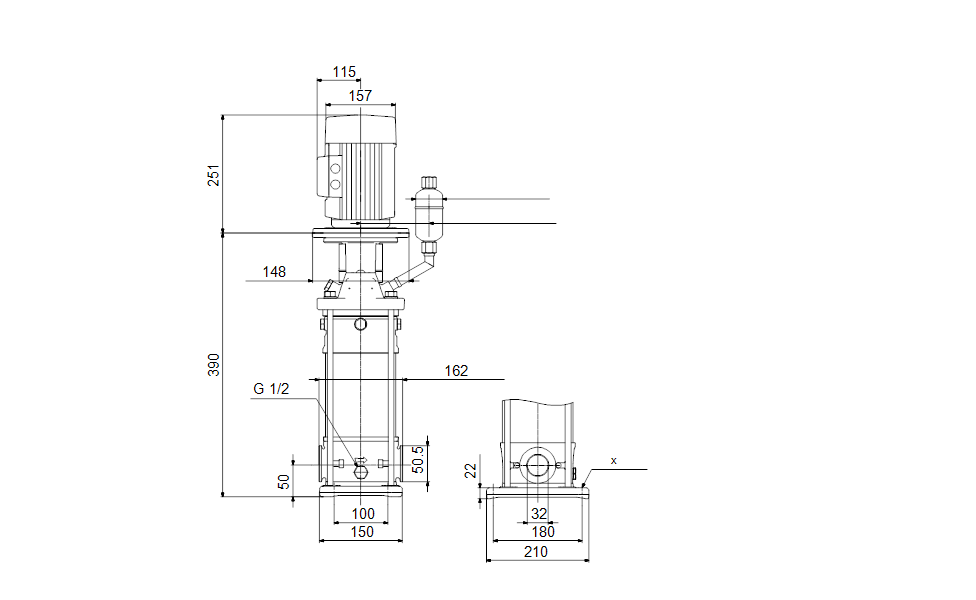

Dimensional Drawing

DWiring Diagram
