Grundfos 98160719 - CRN 1-13 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,986.24
GRUNDFOSSKU: 98160719

Price:
Sale price$2,151.76 Regular price$4,138.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160719 - CRN 1-13 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98160719 - CRN 1-13 A-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 1-13 model is perfect for applications requiring consistent flow and pressure. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special, High Pressure, and Vertical Multistage types.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, ensuring you select the correct replacement.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

EAN 5710629587879
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT100
Frequency converter NONE
Gross weight 67.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 264.8 ft
Maximum operating pressure 25 bar
Model A
Motor FT100
Motor standard IEC
Net weight 61.3 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 2864 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 201.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 13
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

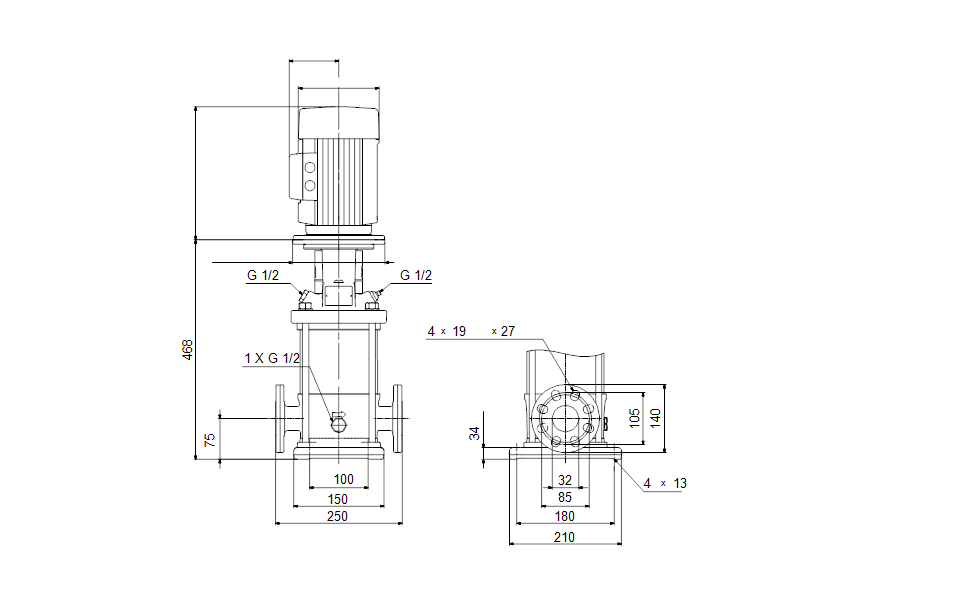

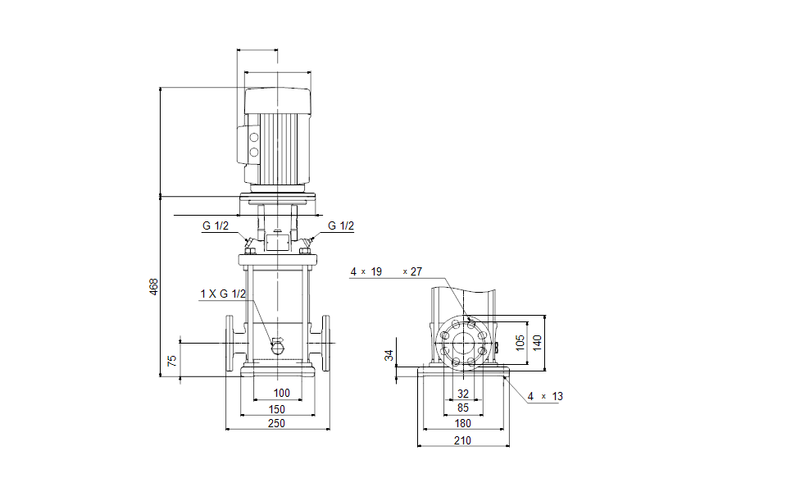

Dimensional Drawing
