Grundfos 92600845 - CRN 1-13 B-FGJ-L-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92600845

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92600845 - CRN 1-13 B-FGJ-L-E-HQQE is a vertical multistage centrifugal pump suited for industrial and commercial applications where reliable high-pressure in-line performance is required. Professionals servicing process, water, or boiler systems commonly install this unit.

Key features

  • Multistage centrifugal design for steady pressure delivery
  • Vertical, in-line configuration ideal for compact piping arrangements
  • Service-oriented construction simplifies maintenance and reduces downtime

Applications

General pumping for industrial process systems, high-pressure water supply, boiler feed, and other in-line multistage applications. Keep claims general and confirm system compatibility prior to purchase.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92600845

EAN 5715116890074
Approvals EAC
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT115
Frequency converter NONE
Gross weight 82.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code L
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 381.3 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor No 99605795
Motor standard IEC
Net weight 73.7 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3463 rpm
Pump version B
Pumped liquid Water
Rated flow 9.69 US gpm
Rated head 285.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 13
Standard IEC
Type of connection DIN / ANSI / JIS
Version B

Motor Curves

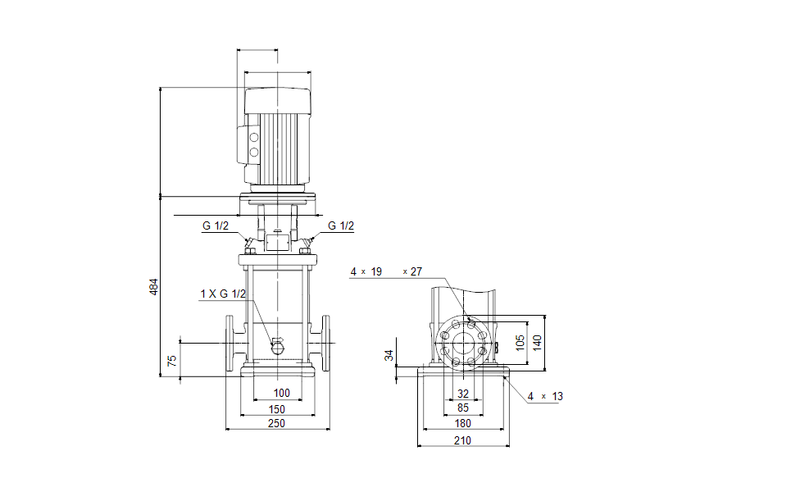

Dimensional Drawing
