Grundfos 98160673 - CRN 1-12 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,930.08
GRUNDFOSSKU: 98160673

Price:
Sale price$2,090.92 Regular price$4,021.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160673 - CRN 1-12 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98160673 - CRN 1-12 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 1-12 A-P-A-E-HQQE model is perfect for applications requiring consistent flow and pressure. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special, High Pressure, and Vertical Multistage types.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98160673. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710629587411
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 57.4 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 245.1 ft
Maximum operating pressure 25 bar
Model A
Motor FT100
Motor standard IEC
Net weight 51.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 2864 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 187.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 12
Standard IEC
Type of connection PJE
Version A

Motor Curves

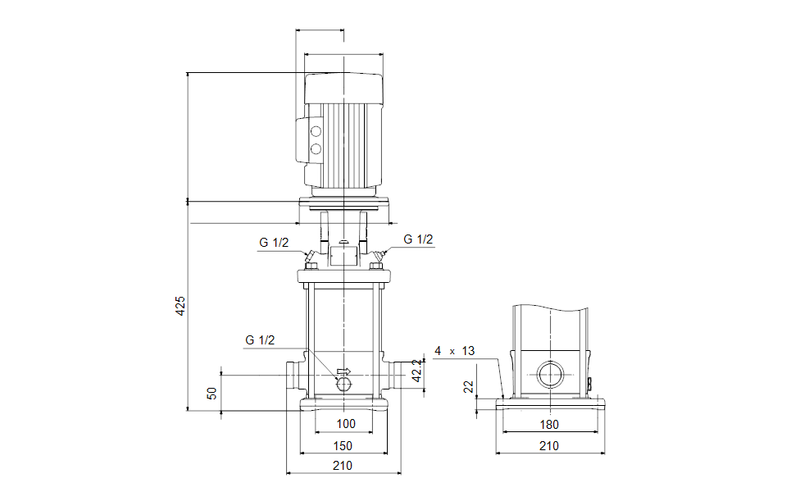

Dimensional Drawing
