Grundfos 98160671 - CRN 1-11 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,825.44
GRUNDFOSSKU: 98160671

Price:
Sale price$1,977.56 Regular price$3,803.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160671 - CRN 1-11 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98160671 - CRN 1-11 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure and inline pumping needs.

This model is part of the CRN series, known for its robust construction and versatility. It is suitable for various service special applications and is categorized under centrifugal pumps, including both single and multi-stage options. Please note that this model does not include models 95 through 255.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98160671. If you encounter any difficulties in identifying the right item, our team is here to help!

EAN 5710629587398
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 48.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 222.8 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 42.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 2856 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 168 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 11
Standard IEC
Type of connection PJE
Version A

Motor Curves

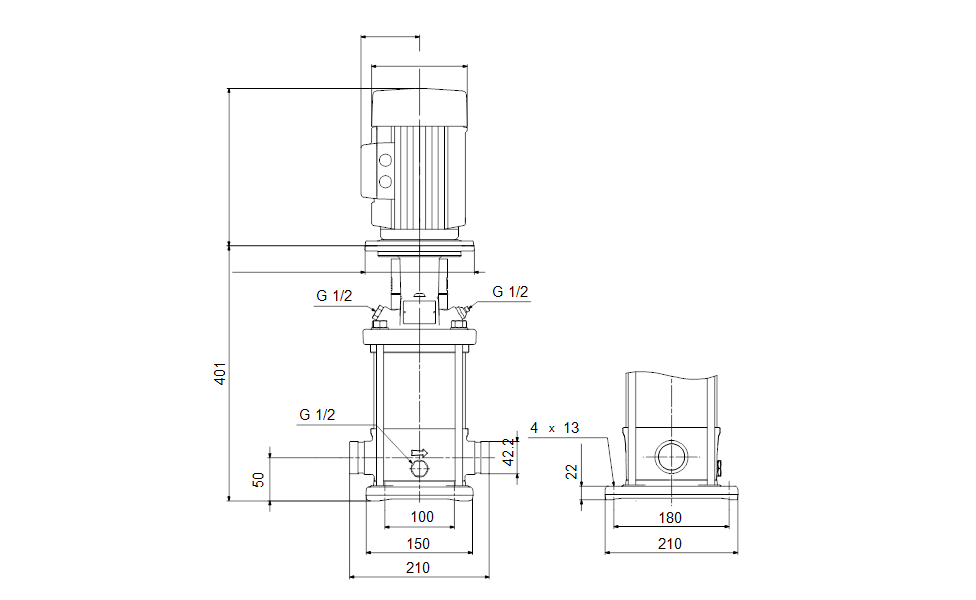

Dimensional Drawing
