Grundfos 98364022 - CRN 1-10 BM-FGJ-A-E | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98364022

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

CRN 1-10 BM-FGJ-A-E Multistage Centrifugal Vertical Inline is a vertical, inline multistage centrifugal pump designed for service and maintenance applications. Grundfos construction and stainless-steel wetted parts suit commercial and industrial users seeking durable replacement pumps.

Key features

  • Vertical, inline multistage centrifugal design with inlet and outlet ports at the same level
  • Wetted parts in high-grade stainless steel for corrosion resistance
  • Flanged pipe connections compatible with combined DIN-ANSI-JIS standards for simplified installation and replacement

Applications

Suitable for high-pressure boosting, circulation, and general service tasks in commercial and light industrial systems; common in HVAC, water supply, and boiler feed applications.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98364022

EAN 5711493712565
Approvals EAC
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Flange rating inlet 300 lb
Flange size for motor FT115
Frequency converter NONE
Gross weight 62.0 kg
Impeller Stainless steel
Impellers 0
Liquid temperature range -20 .. 120 °C
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 25 bar / 120 °C
Maximum head 90.1 m
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor No 99605881
Motor standard IEC
Net weight 41.0 kg
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3463 rpm
Pump version bm
Pumped liquid Water
Rated flow 2.2 m³/h
Rated head 68.8 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 10
Standard IEC
Type of connection DIN / ANSI / JIS
Version bm

Motor Curves

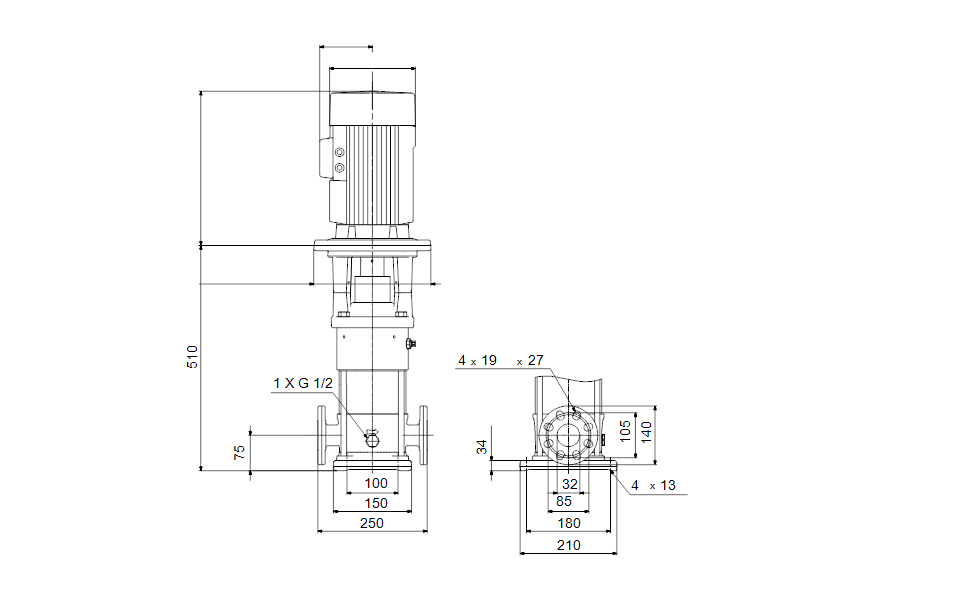

Dimensional Drawing
