Grundfos 98160714 - CRN 1-10 A-FGJ-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $1,792.80
GRUNDFOSSKU: 98160714

Price:
Sale price$1,942.20 Regular price$3,735.00
or Call for most up to date lead times. (781) 281-8905

Description

CRN 1-10 A-FGJ-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5710629587824
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 57.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 203.4 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 50.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 2856 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 154.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 10
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

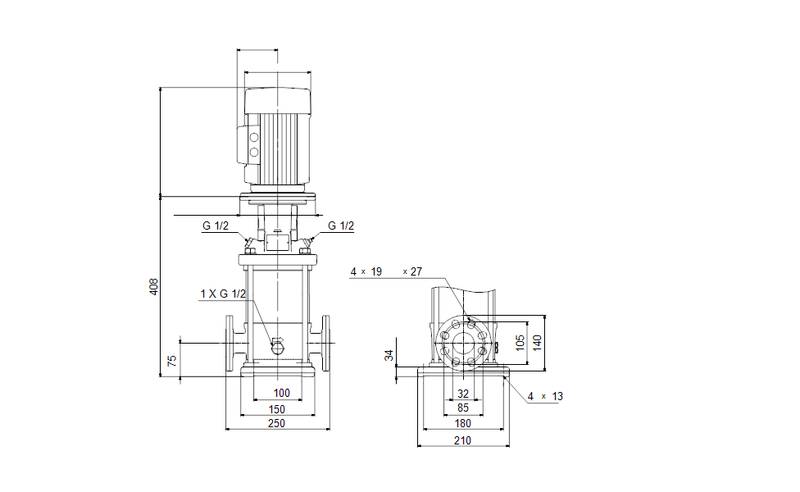

Dimensional Drawing
