Grundfos 98160670 - CRN 1-10 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,792.80
GRUNDFOSSKU: 98160670

Price:
Sale price$1,942.20 Regular price$3,735.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160670 - CRN 1-10 A-P-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98160670 - CRN 1-10 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

This model is part of the CRN series, known for its robust construction and versatility. It is suitable for various service applications, including water supply, pressure boosting, and industrial processes. With its compact design and vertical orientation, the CRN 1-10 A-P-A-V-HQQV is perfect for installations with limited space.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98160670. If you encounter any difficulties in identifying the right item, our team is here to help you find the perfect solution.

EAN 5710629587381
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 47.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 203.4 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 41.7 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 2856 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 154.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 10
Standard IEC
Type of connection PJE
Version A

Motor Curves

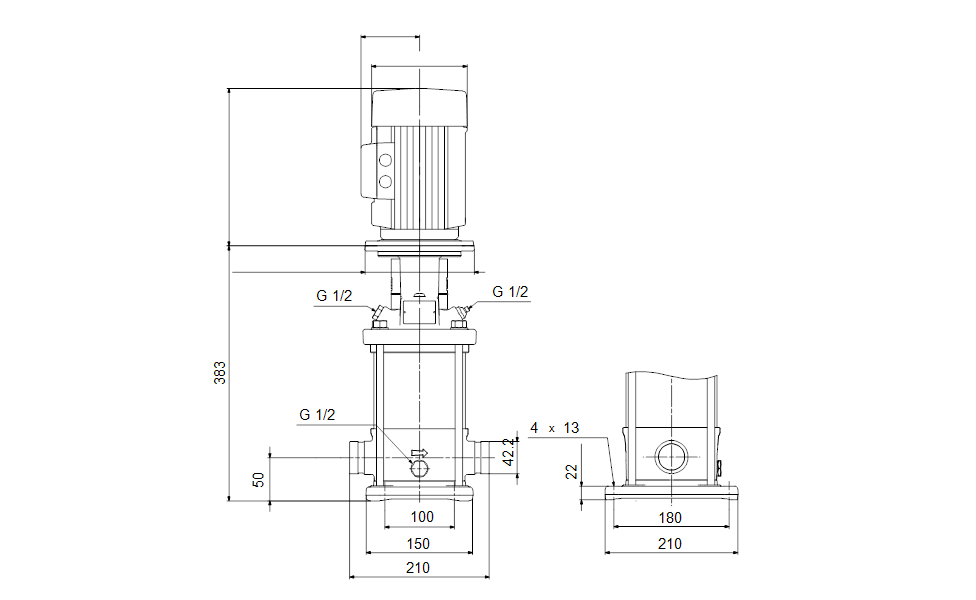

Dimensional Drawing
