Grundfos 98160669 - CRN 1-10 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,759.20
GRUNDFOSSKU: 98160669

Price:
Sale price$1,905.80 Regular price$3,665.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160669 - CRN 1-10 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98160669 - CRN 1-10 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 1-10 A-P-A-E-HQQE model is perfect for applications requiring consistent flow and pressure. This pump is part of the Grundfos Centrifugal Pumps range, specifically tailored for both single and multi-stage operations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5710629587374
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 47.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 203.4 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 41.7 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 2856 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 154.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 10
Standard IEC
Type of connection PJE
Version A

Motor Curves

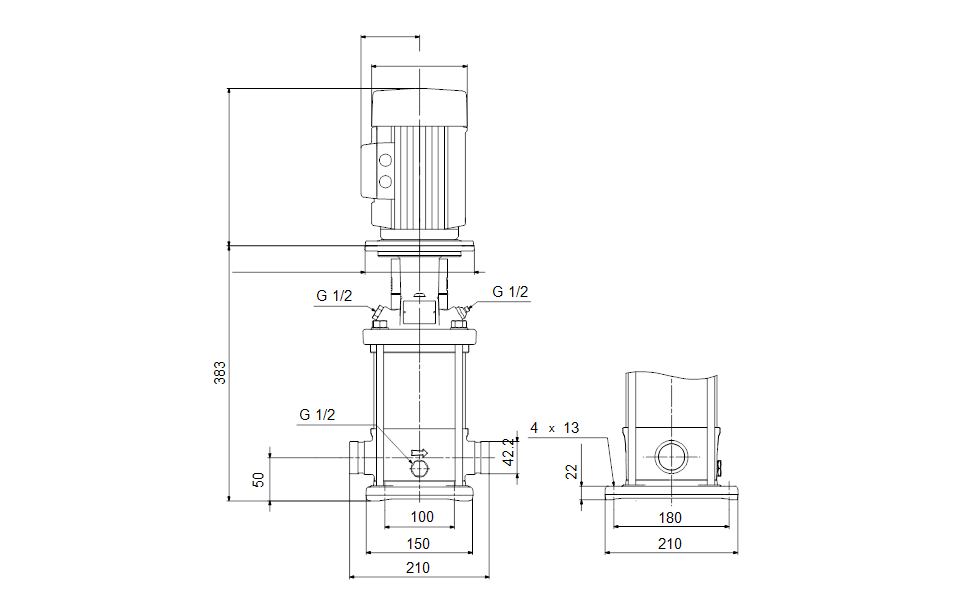

Dimensional Drawing
