Description
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

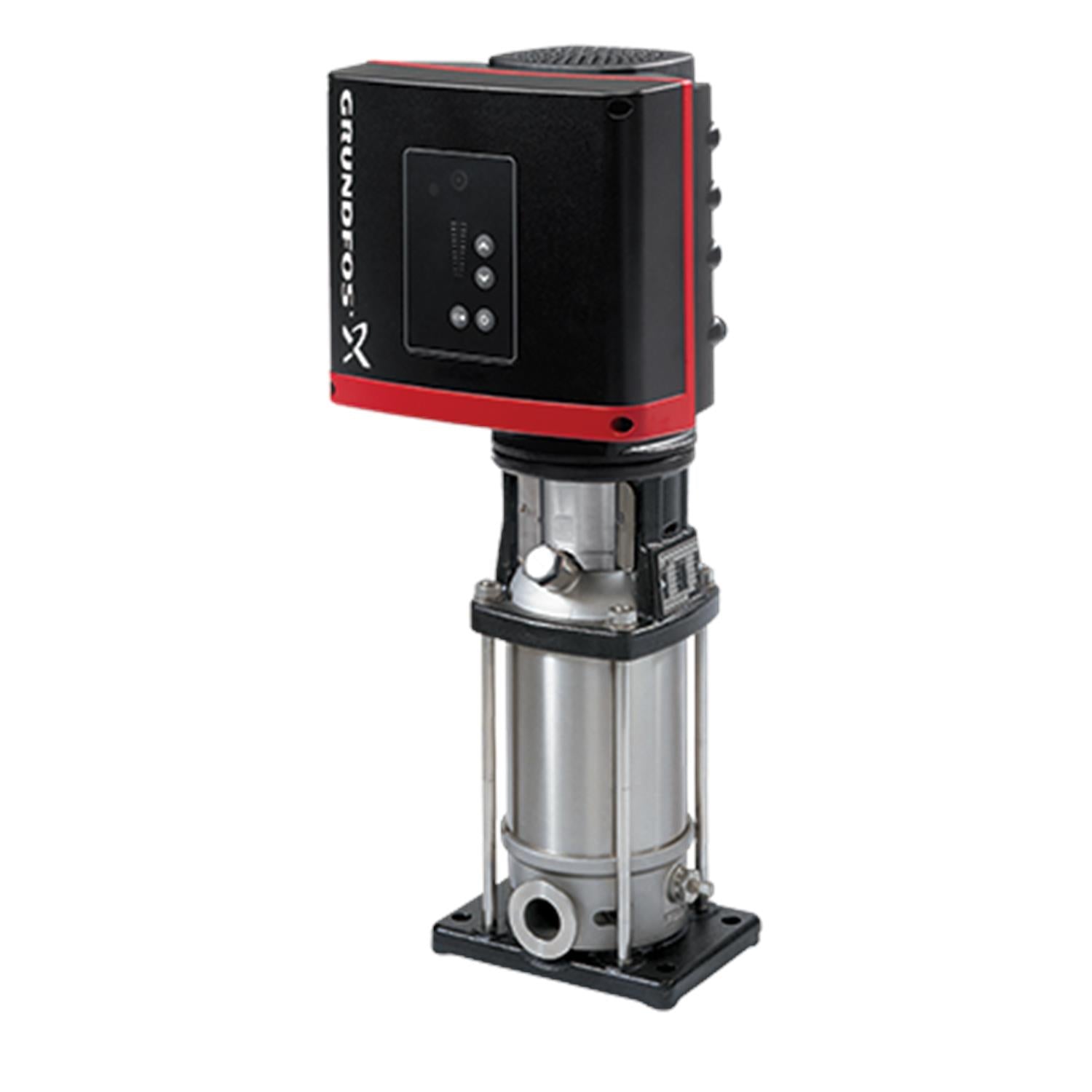

CRIF 1-17 A-CA-A-E-HQQE · Grundfos Accessory / Spare Part / Control
The Grundfos 98414701 (CRIF 1-17 A-CA-A-E-HQQE) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 9.69US gpm at 362.9ft. Applications include Municipal solar solutions, Rotor & spray irrigation, Ground water transfer and more.
Power
2HP
Phase
1-Phase
Max Flow
9.69US gpm
Max Head
362.9ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — CRIF 1-17 A-CA-A-E-HQQE
Series: ACC
Model Code: CRIF 1-17 A-CA-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Technical Specifications
| Model Number | 98414701 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 2HP |
| Phase | 1-Phase |
| Frequency | 50, 60 Hz |
| Motor Speed | 500-3600rpm |
| Pump Speed | 3452rpm |
| Full Load Current | 8.9A |
| Motor Type | 90SC |
| Motor Protection | ELEC |
| Motor Efficiency Class | IE5 |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 9.69US gpm |
| Nominal Head | 362.9ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 122°F |
| Nominal Pipe Bore | DN 32 |
| Pipe Standard | FLEXICLAMP |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQE |
| Approvals / Certifications | CE, UKCA, SEPRO, RCM |
Applications
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — CRIF 1-17 A-CA-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5711494622344
- Applications
- Solar Water Solutions
- Approvals
- CE
- Approvals for drinking water
- WRAS
- Built-in motor protection
- ELEC
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Config. file no
- 98412558
- Connect code
- CA
- Connection
- DN 32
- Control panel
- HMI200 - Standard
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- FT115
- Function Module
- FM300 - Advanced
- Gross weight
- 83.7 lb
- Housing
- Stainless steel
- Impeller
- Stainless steel
- Impellers
- 17
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -4 .. 248 °F
- Material code
- A
- Material Pricing Group
- 17
- Max pressure at stated temp
- 363 psi / 250 °F
- Maximum ambient temperature
- 122 °F
- Maximum operating pressure
- 25 bar
- Model
- A
- Motor
- FT115
- Motor type
- 90SC
- Net weight
- 73.5 lb
- Power 1
- 1.73 kW
- Power factor 1
- 0.99
- Power input - P1
- 1.73 kW
- Product family
- CRFlex
- Pump housing
- Stainless steel
- Pump speed on which pump data are based
- 3452 rpm
- Pump version
- A
- Pumped liquid
- Water
- Rated current
- 8.9 A
- Rated flow
- 9.69 US gpm
- Rated head
- 362.9 ft
- Rated power - P2
- 1.5 kW
- Rated speed
- 500-3600 rpm
- Rated voltage ac
- 1 x 90-240 V
- Rated voltage dc
- 30 - 300 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Size of connection
- DN 32
- Stages
- 17
- Type
- 90SC
- Type of connection
- FlexiClamp
- Version
- A
Dimensional Drawing
Wiring Diagram
