Grundfos 92958144 - CRIE 5-6 P-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92958144

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

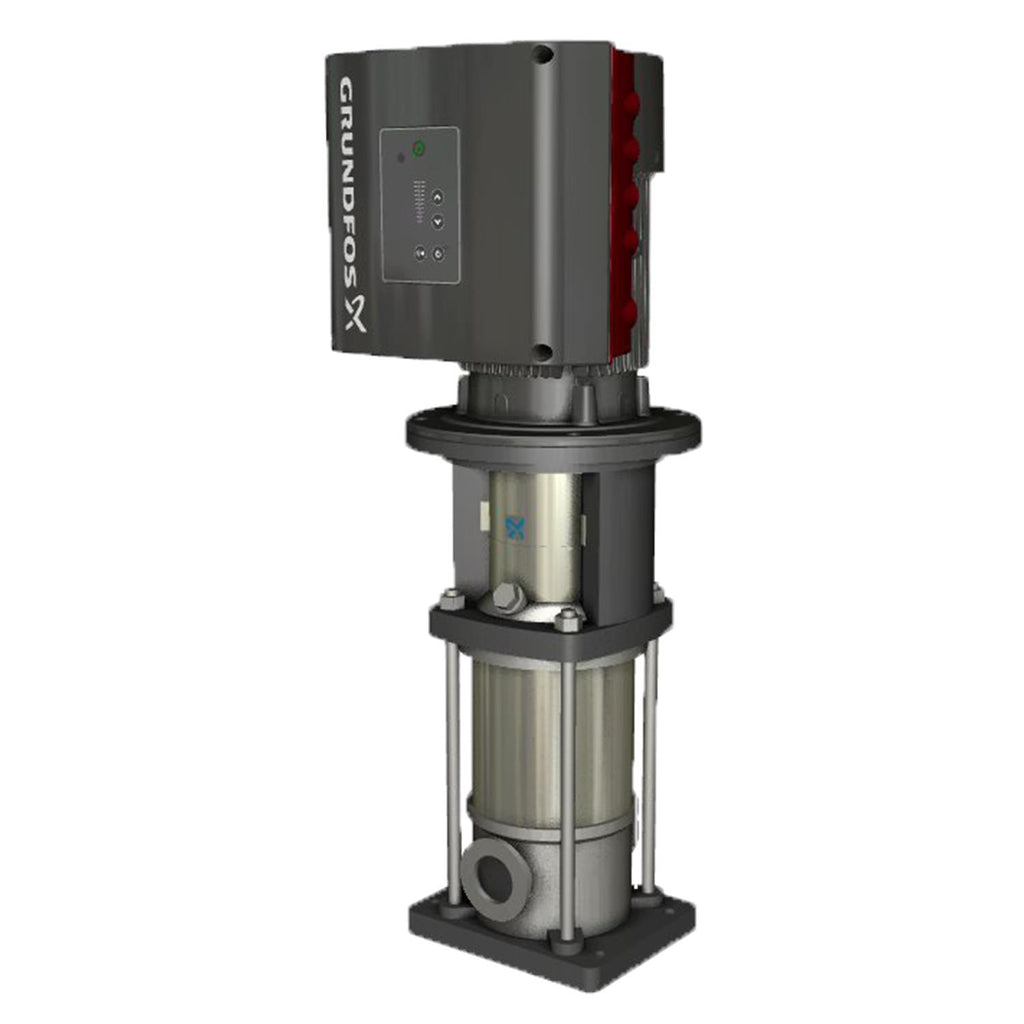

Grundfos 92958144 - CRIE 5-6 P-CA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92958144 - CRIE 5-6 P-CA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and efficient fluid transfer.

With its robust construction and advanced design, the CRIE 5-6 P-CA-A-E-HQQE ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is categorized under Service Special, Centrifugal Pumps, and High Pressure, ensuring it meets the diverse needs of various industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715122159141
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499198
Connect code CA
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 69.8 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 209.3 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.874
Motor standard NEMA
Motor type 90C
Net weight 58.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.99
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3499 rpm
Pump version P
Pumped liquid Water
Rated current 9.10-7.60 A
Rated flow 30.4 US gpm
Rated head 153.2 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 6
Standard NEMA
Type 90C
Type of connection FlexiClamp
Version P

Motor Curves

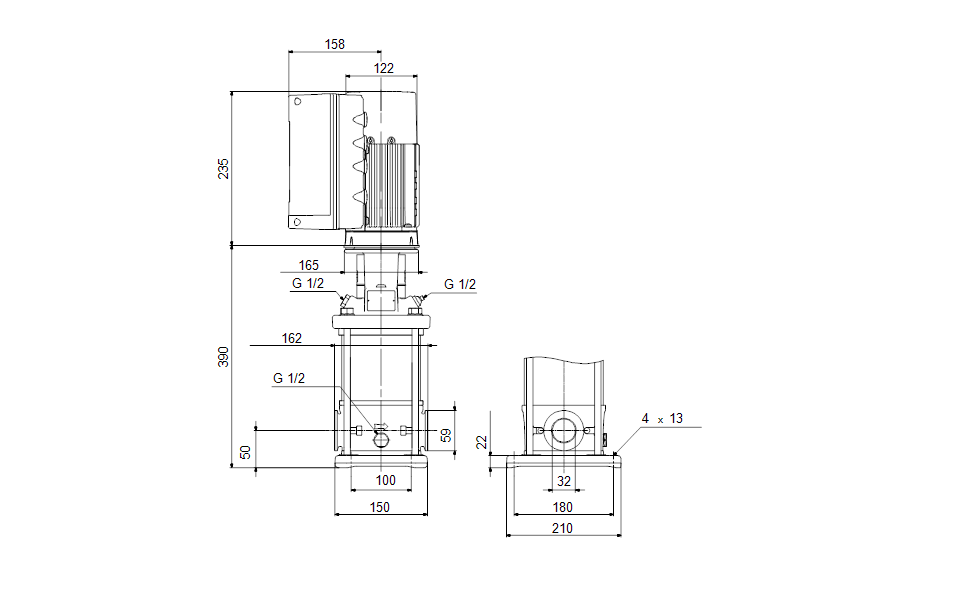

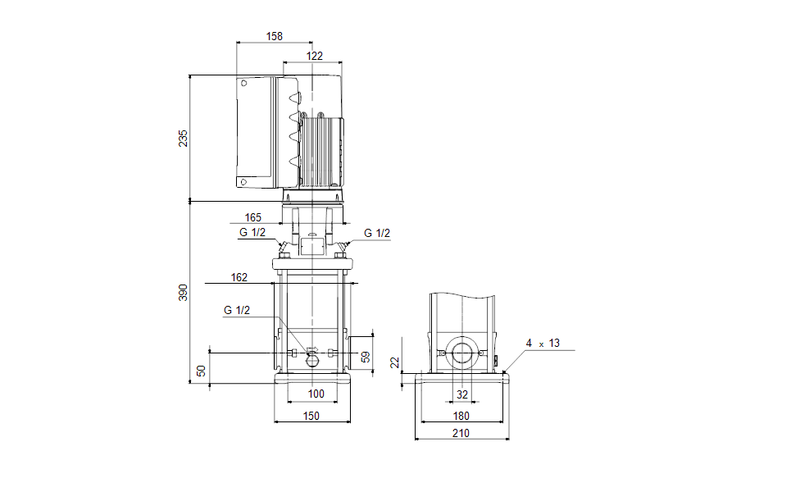

Dimensional Drawing

DWiring Diagram
