Grundfos 92538015 - CRIE 5-6 P-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92538015

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92538015 is a CRIE 5-6 P-FGJ-A-E-HQQE vertical multistage centrifugal pump intended for industrial fluid handling where compact, high-pressure in-line performance is required. Contractors and maintenance crews commonly use this unit as a replacement in vertical multistage systems.

Key features

  • Vertical, in-line multistage centrifugal construction for compact footprint
  • Designed for high-pressure service and multi-stage boosting applications
  • Service-special configuration offering straightforward replacement and reliable system pressure control

Applications

Typical uses include high-pressure water boosting, boiler feed, industrial process circulation, and other vertical multistage centrifugal duties in commercial and light industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92538015

EAN 5715115913354
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99304163
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 155.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 203.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.889
Motor standard NEMA
Motor type 90C
Net weight 71.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.92
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3452 rpm
Pump version P
Pumped liquid Water
Rated current 5.40-4.60 A
Rated flow 30.4 US gpm
Rated head 147.6 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 6
Standard NEMA
Type 90C
Type of connection DIN / ANSI / JIS
Version P

Motor Curves

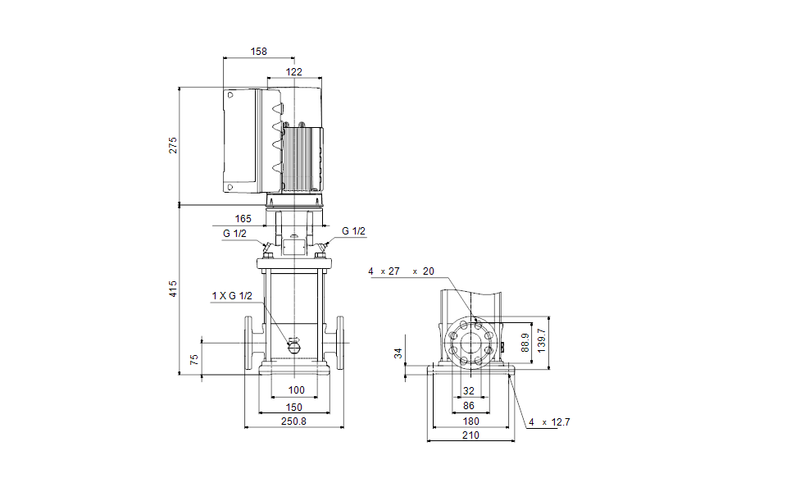

Dimensional Drawing

DWiring Diagram
