Grundfos 98183181 - CRIE 20-8 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $9,221.76
GRUNDFOSSKU: 98183181

Price:
Sale price$9,990.24 Regular price$19,212.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98183181 - CRIE 20-8 A-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features advanced technology that ensures optimal performance in demanding environments. With its robust construction and innovative design, the CRIE 20-8 A-FGJ-A-E-HQQE is suitable for both commercial and industrial use, providing consistent flow rates and pressure levels.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, ensuring you select the correct replacement.

Explore our extensive range of centrifugal pumps, including the CRIE series, and experience the quality and performance that Grundfos is known for. For more information on specifications and applications, feel free to reach out to our knowledgeable team.

EAN 5711491080628
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection YES
Code for rubber E
Code for shaft seal HQQE
Config. file no 95139700
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.46
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 254TC
Function Module ADVANCED I/O
Gross weight 507.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 557.8 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type 160AB
Net weight 392.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Product family CRIE 20
Pump 15 kW
Pump speed on which pump data are based 3497 rpm
Pump version A
Pumped liquid Water
Rated current 26 A
Rated flow 111 US gpm
Rated head 442.9 ft
Rated power - P2 15 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Terminal box position 6
Type 160AB
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

Dimensional Drawing

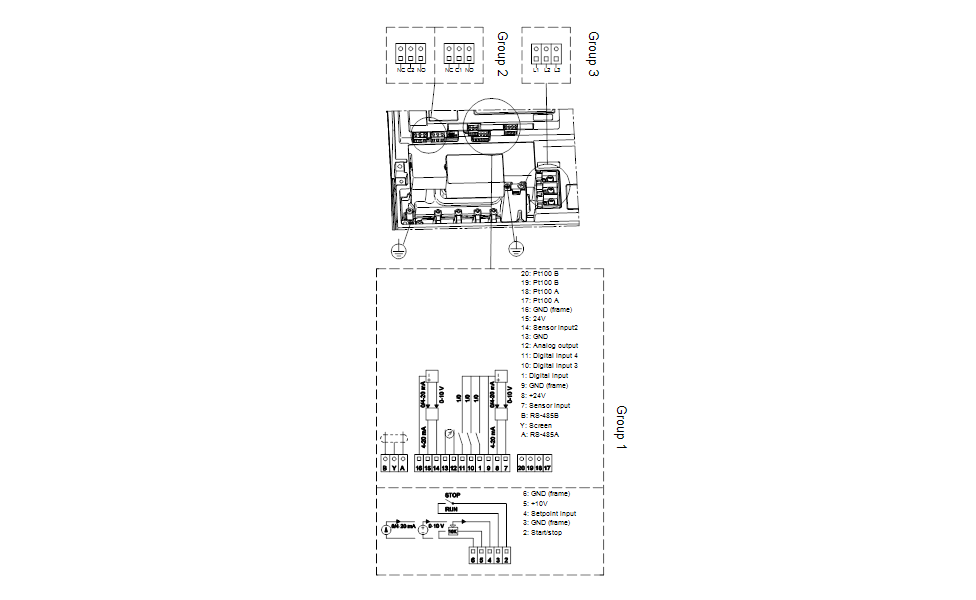

DWiring Diagram
